ZEBRA GAMBER VEHICLE DOCK L10 ANDROID PTA

GAMBER JOHNSON VEHICLE DOCK, L10 ANDROID, 1 RS232, 4 USB 2.0, MICROPHONE, HEADSET / SPEAKERS, PASS THROUGH ANTENNA, PWRS SOLD SEPARATELY

• Designed for rugged vehicle/fork lift operations.

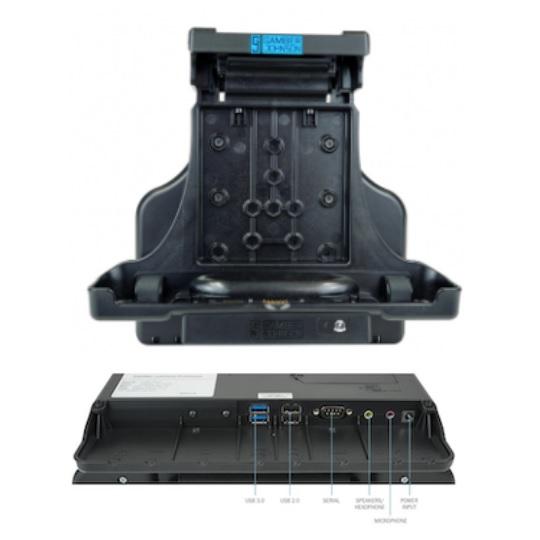

• Provides the following ports:

- Power (barrel jack)
- 2 USB 3.0 providing 900maH current - ports operate as USB 2.0
- 2 USB 2.0 providing 500maH current
- 1 hidden USB port behind access door
- 1 powered serial port (via Pin 9)
- 3.5mm speaker/headphone
- 3.5mm microphone
- External antenna ports (based on SKU)

• Two USB 900maH USB ports can power DS3508-ER/DS3608-ER in default full power mode.
• Serial port includes switch for enabling/disabling power to pin 9. When enabled can power the DS3508-ER/DS3608-ER in default full power mode.
• LED indicator lights show when "tablet is docked" and "dock is powered"
• Compatible with all L10 series models except ATEX/IECEX versions which have a thicker armoured case.
• Supports VESA 75mm, 50 x 100MM, AMPS, NEC mounting patterns.
• Includes key lock.
