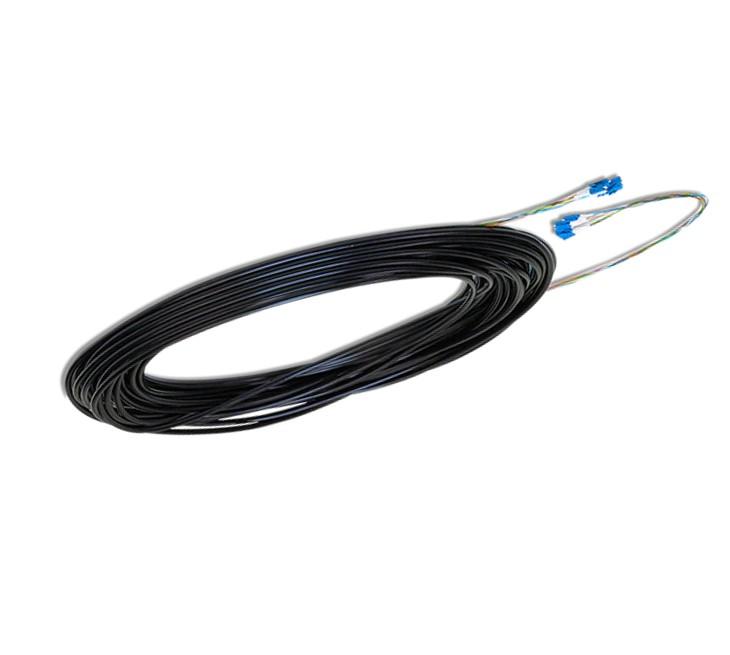

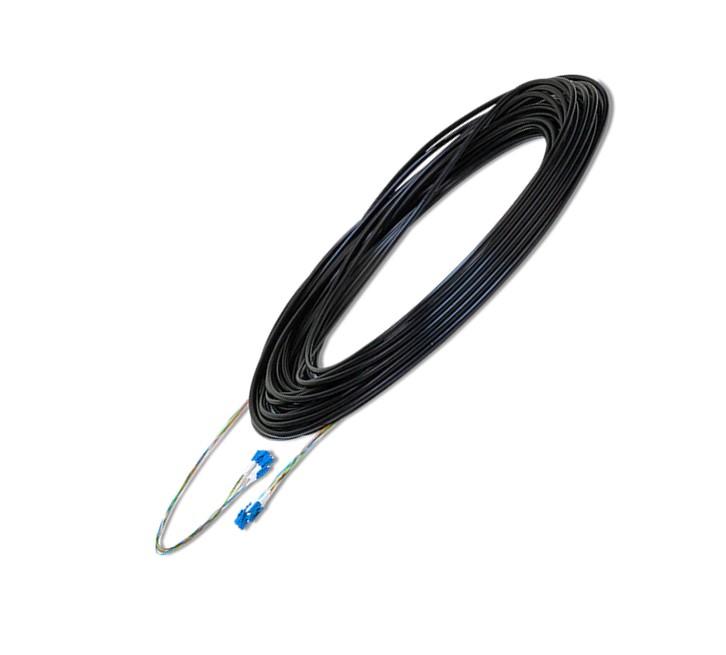

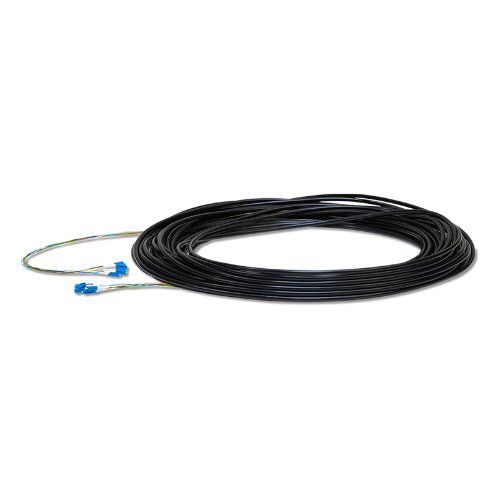

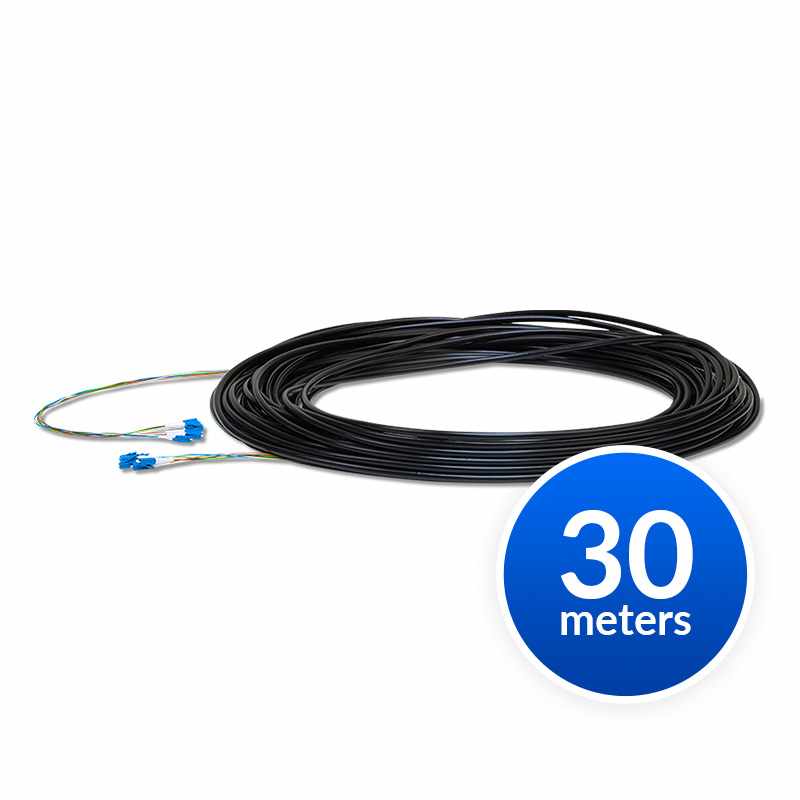

Ubiquiti Single-Mode Lightweight Fiber Cable, Lenth 30m, Outdoor Jacket, Kevlar Yarn For Added Tensile Strength, Weatherproof Tape,

Ubiquiti Single-Mode LC Fiber Cable

SKU: FC-SM-100

Description: Lightweight fiber cable ideal for tower deployments of our outdoor products, such as EdgePoint.

Features:

• Outdoor-Rated Jacket with Ripcord
• Integrated Weatherproof Tape
• Kevlar Yarn for Added Tensile Strength
• Outer Diameter of Cable: 6.0 ± 0.2 mm
• Six-Strand Single-Mode (G.657.A2)
• Outer Diameter of Fiber Strand: 0.25 mm Nominal
• Insertion Loss
• 1310 nm: ≤0.5 dB/km
• 1550 nm: ≤0.5 dB/km
• Length: 30m

Category: Network - UISP / Fibre

Overview

• Available Lengths: 30.5/61/91.5 m
  (100/200/300 ft)
• Pack Options: Single Unit
• Connector: (12) Simplex LC UPC
• Operating Environment: Outdoor
• Weatherproofing: IP65 (Not including connectors)
• Cable
• Fiber Mode: OS1
• Jacket Diameter: 6 mm (0.24")
• Jacket Material: Thermoplastic polyurethane (TPU) with Kevlar strength member inside
• Jacket Color: Black
• Wavelength: 1310/1550 nm
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Repeatability: ≤ 0.5 dB
• Ambient Operating Temperature: -40 to 80° C (-40 to 176° F)
