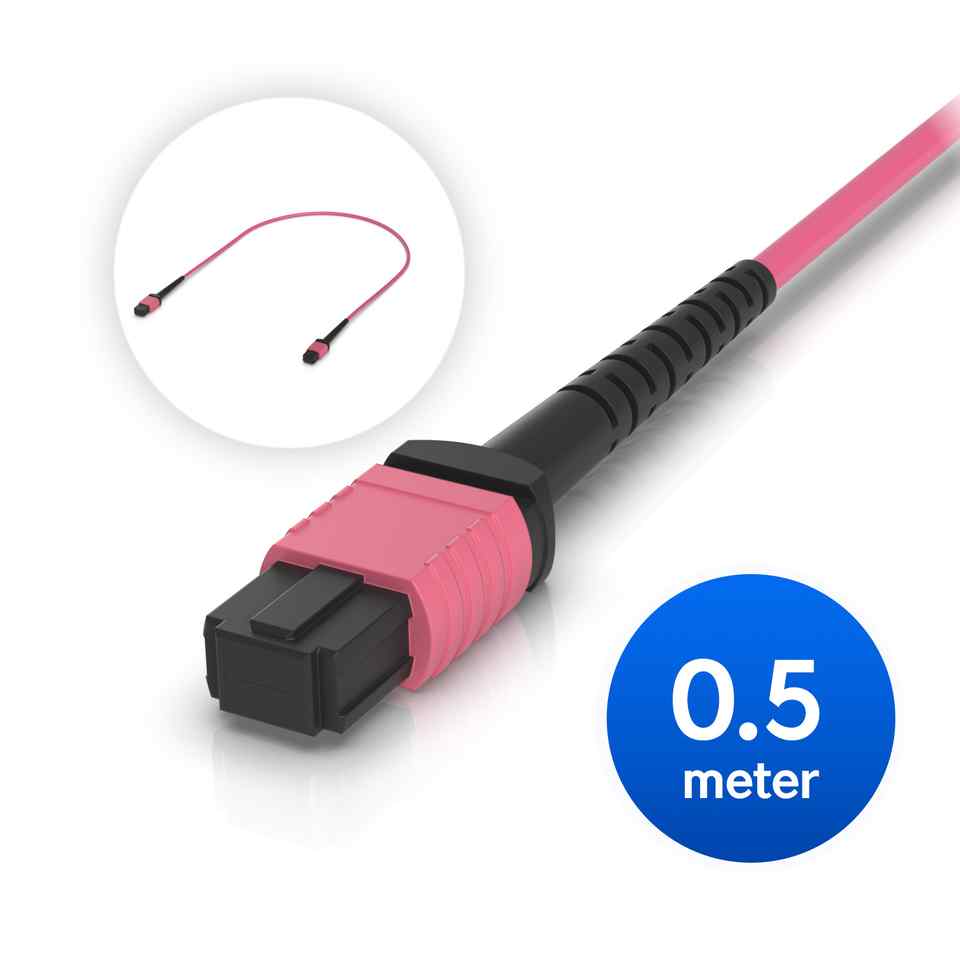

Ubiquiti Indoor OM4 Multi-mode Fiber Patch Cable, 0.5M, Single-pack, With MPO-12 Type B UPC Connectors, Designed For 100G Applications

Ubiquiti OM4 MPO-12 UPC Fiber Patch Cable,0.5M, Single-pack

SKU:UACC-OFC-MA-MPMP-0.5M, Single-pack

Description: Indoor OM4 multi-mode fiber patch cable with MPO-12 Type B UPC connectors designed for 100G applications.

Features:

• OM4 multi-mode fiber
• MPO-12 Type B UPC connectors
• Cable length: 0.5 m
• Single-pack

Category: Network - UniFi / Switching 31

Overview

• Available Lengths: 0.5, 1, 3, 5, 10, 15, 30, 60, 100 m
  (1.6, 3.3, 9.8, 16.4, 32.8, 49.2, 98.4, 196.9, 328 ft)
• Pack Options: Single Unit
  10-Pack (0.5/1/3 m)
• Connector: (2) MPO-12 Type B UPC
• Operating Environment: Indoor
• Cable
• Fiber Mode: OM4
• Jacket Diameter: 3 mm (0.12")
• Jacket Material: Low smoke zero halogen (LSZH)
• Jacket Color: Rose
• Wavelength: 850 nm
• Insertion Loss: ≤ 0.6 dB
• Return Loss: ≥ 20 dB
• Repeatability: ≤ 0.1 dB
• Durability: ≤ 0.2 dB (1,000 times mating)
• Ambient Operating Temperature: -40 to 75° C (-40 to 167° F)
