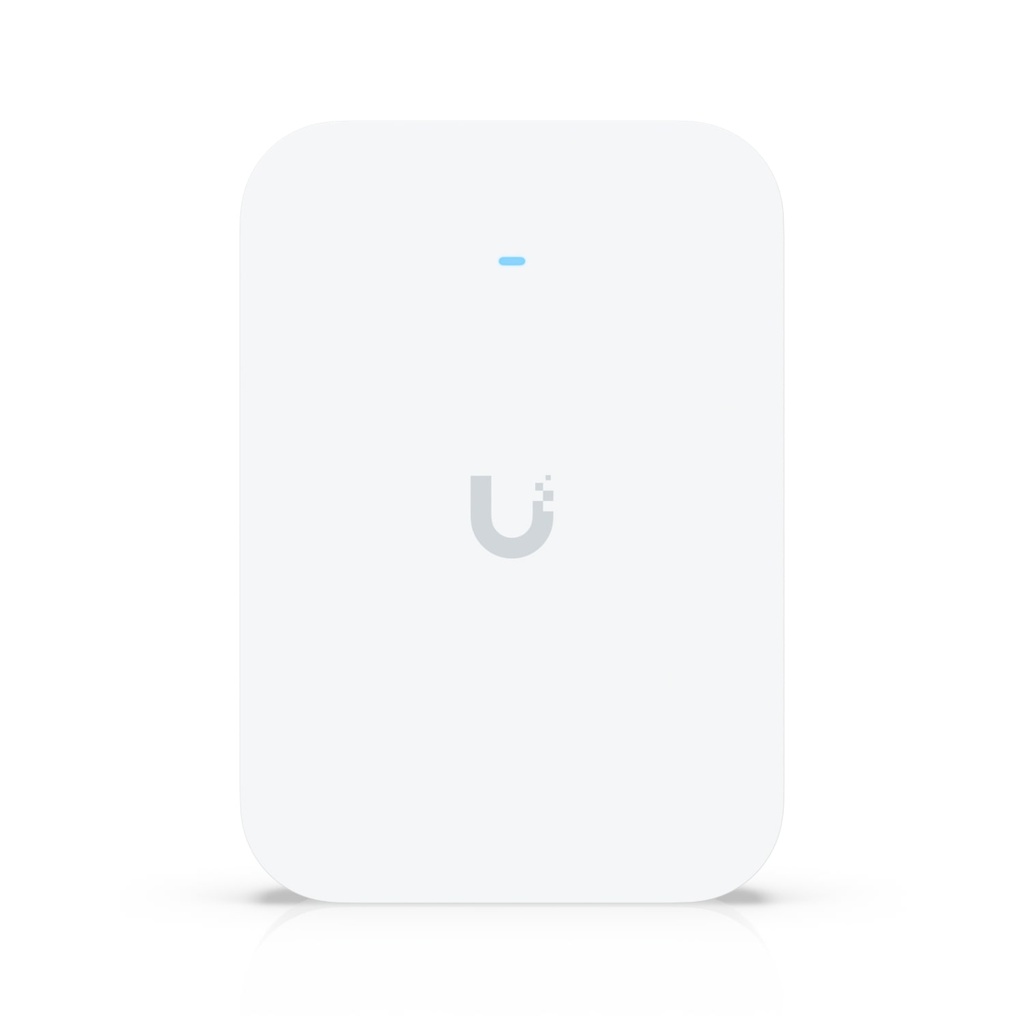

Ubiquiti U7 Pro XG Wall, Wall-Mounted 6 GHz-Ready WiFi 7 AP, 1/2.5/10 GbE support.

Ubiquiti U7 Pro XG Wall

SKU: U7-Pro-XG-Wall

Description:
Wall-mounted 6 GHz-ready WiFi 7 AP with 1/2.5/10 GbE support.

Category: Network - UniFi / WiFi 31

Overview

• Dimensions: 155 x 108 x 33.5 mm
  (6.1 x 4.3 x 1.3'')
• WiFi Standard: WiFi 7 (With 6 GHz support)
• Spatial Streams: 6
• Coverage Area: 140 m² (1,500 ft²)
• Max. Client Count: 300+
• Uplink: 10 GbE
• Mounting: Wall
• Power Method: PoE+

Performance

• MIMO
• 6 GHz: 2 x 2 (DL/UL MU-MIMO)
• 5 GHz: 2 x 2 (DL/UL MU-MIMO)
• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
• Max. Data Rate
• 6 GHz: 5.8 Gbps (BW320)
• 5 GHz: 4.3 Gbps (BW240)
• 2.4 GHz: 688 Mbps (BW40)
• Antenna Gain
• 6 GHz: 6 dBi
• 5 GHz: 6 dBi
• 2.4 GHz: 4 dBi
• Max. TX Power
• 6 GHz: 24 dBm
• 5 GHz: 26 dBm
• 2.4 GHz: 23 dBm
• Max. BSSIDs: 8 per Radio
• Supported Data Rates
• 802.11be (WiFi 7): 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
  5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
• 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
• 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

• Wireless Meshing: Yes
• Band Steering: Yes
• 802.11v BSS Transition Management: Yes
• 802.11r Fast Roaming: Yes
• 802.11k Radio Resource Management (RRM): Yes
• Advanced Radio Management: Yes
• Passpoint (Hotspot 2.0): Yes
• Captive Hotspot Portal
• Custom Branding Landing Page: Yes
• Voucher Authentication: Yes
• Payment-Based Authentication: Yes
• External Portal Server Support: Yes
• Password Authentication: Yes
• Guest Network Isolation: Yes
• Private Pre-Shared Key (PPSK): Yes
• WiFi Speed Limiting: Yes
• Client Device Isolation: Yes
• WiFi Schedules: Yes
• RADIUS over TLS (RadSec): Yes
• Dynamic RADIUS-assigned VLAN: Yes

Hardware

• Max. Power Consumption: 22W
• Supported Voltage Range: 42.5–57V DC

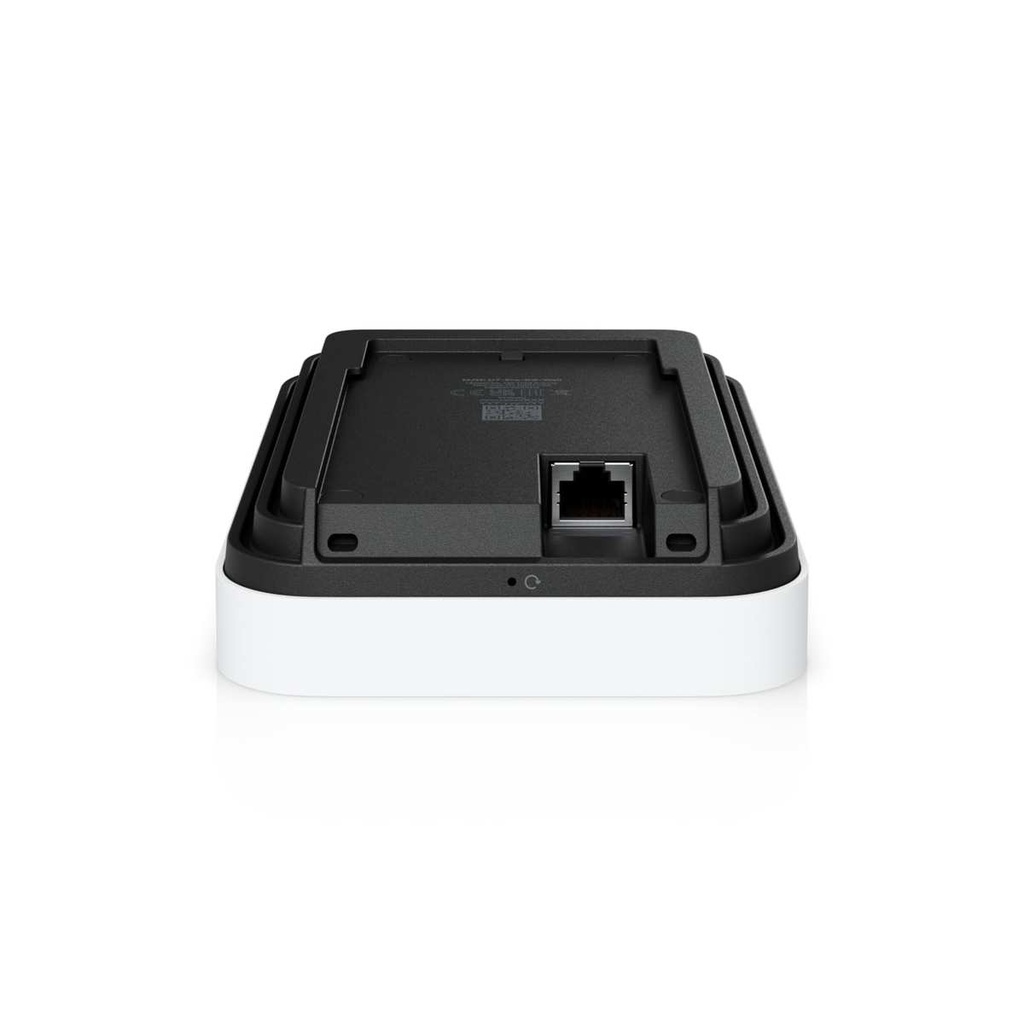

• Networking Interface: (1) 10 GbE RJ45 port
• Weight: 505 g (1.1 lb)
• Management: Ethernet
• Enclosure Material: Polycarbonate, aluminum alloy
• Mount Material: Aluminum alloy
• LEDs
• System: W/B
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
• Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC

Software

• Application Requirements
• UniFi Network: Version 10.0 and later
• Mobile App: iOS™ version 10.29.3 and later
  Android™ version 10.31.1 and later
