Ubiquiti Precision Rack Mount Kit, 20-Pack, 1U Snap-in Inserts, With Two Vertically Aligned Cage Nuts, Ensure Uniform Rack Installation

Ubiquiti Precision Rack Mount Kit, 20-Pack

SKU: UACC-Rack-PM-Kit

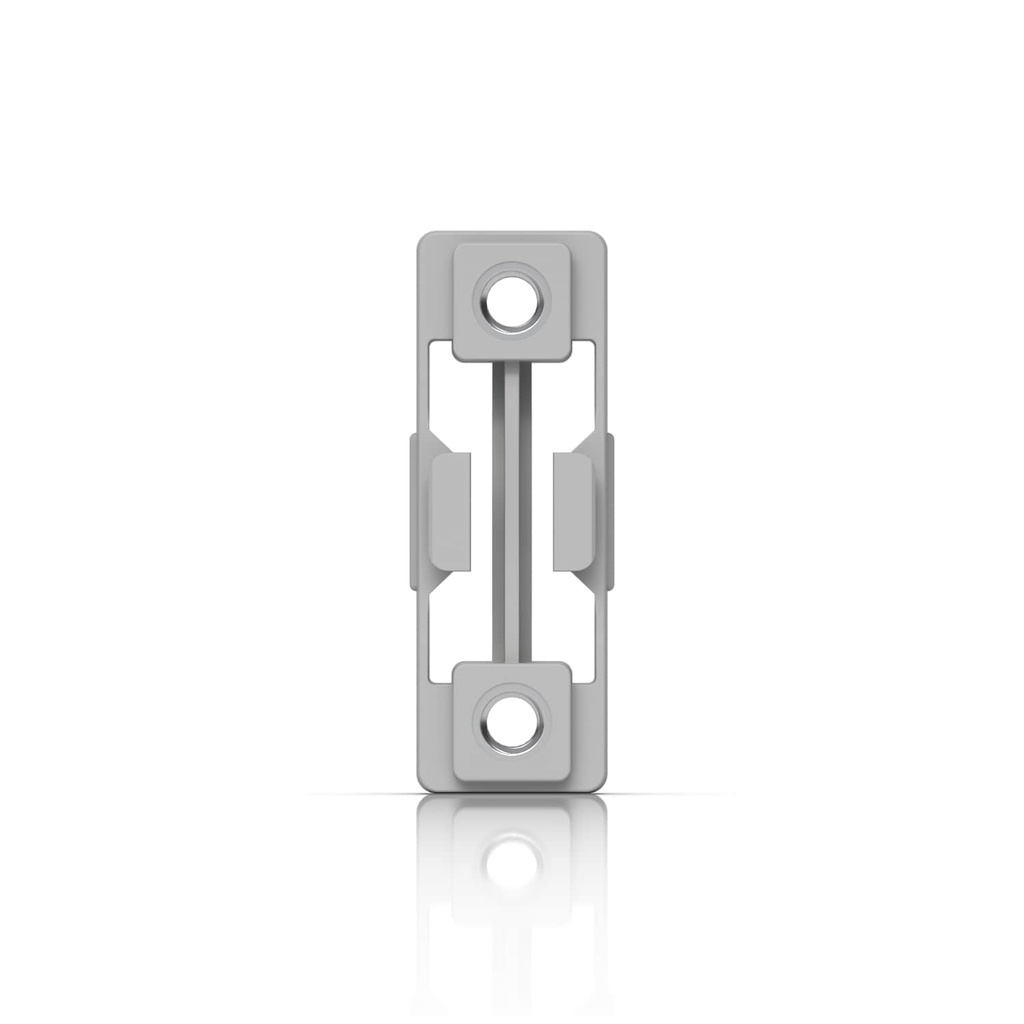

Description: 1U snap-in inserts with two vertically aligned cage nuts designed to ensure uniform rack installations.

Features:

• Easy installation and removal
• Pair multiple inserts to mount larger devices

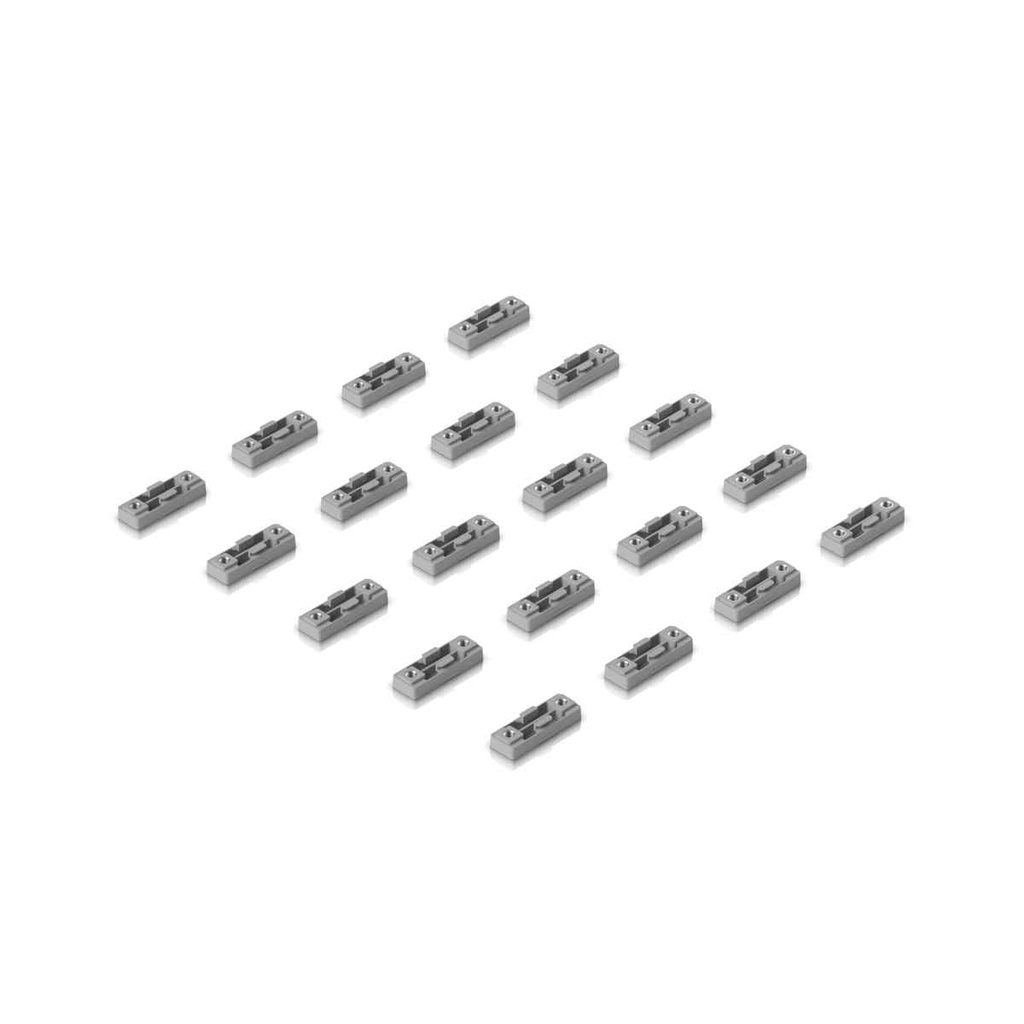

• (20) Precision Rack Mount inserts per kit

Category: Network - UniFi / Data Rack Cabinets & 31

Overview

• Dimensions: 42.7 x 15.5 x 8.7 mm (1.7 x 0.6 x 0.34")
• Weight: 4 g (0.14 oz)
• Material: Thermoplastic (PA66)
• Treatment: Texture
• Rack Rail Thickness: Up to 2.2 mm (0.08")
• Screws: #10-32
• Strength: SnapMount rack inserts have been tested and qualified with the following shear forces:

  1U: Supports devices with a depth of up to 400 mm and a maximum weight of 10 kg.

  2U: Supports devices with a depth of up to 325 mm and a maximum weight of 20 kg.

  It is recommended to support installed devices from the rear if depth exceeds 400 mm for 1U or 325 mm for 2U.
• Pack Options: 20-Pack (for 10U installation)
