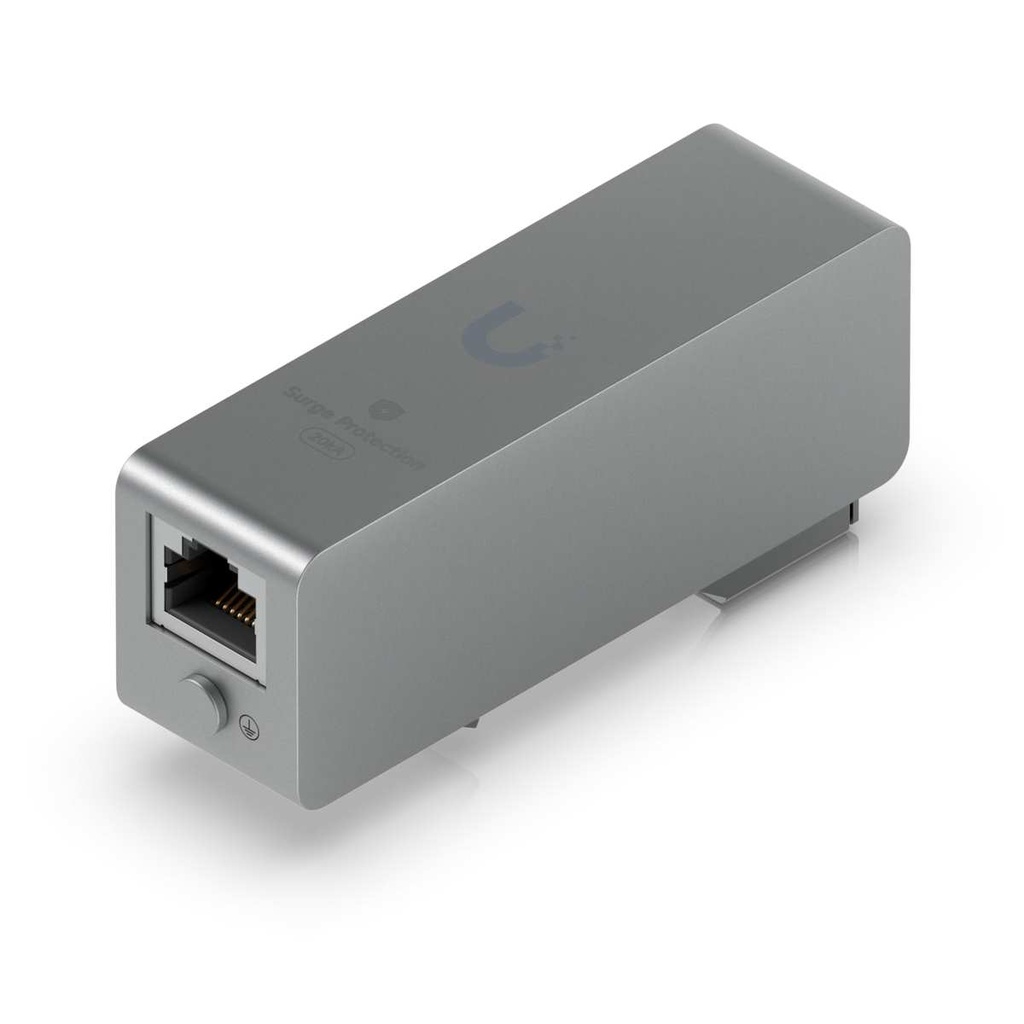

Ubiquiti Ethernet Surge Protection,Bidirectional Protection 10 GbE, PoE++,20kA Surge Discharge Indoor Instal,Wall/DIN Rail Mount,Multiple Grounding

Ubiquiti Ethernet Surge Protection

SKU: UACC-ETH-SP-DIN

Description:
Bidirectional protection for up to 10 GbE, PoE++, and 20kA surge discharge for indoor installation.

Features:

• Wall/DIN rail mount
• Multiple grounding points

Category: Network - UniFi / Switching Accessories

Mechanical

• Dimensions: 89 x 25.5 x 37.4 mm (3.5 x 1 x 1.5")
• Weight: 74 g (2.6 oz)
• Enclosure Material: Polycarbonate, SGCC steel

Hardware

• Networking Interface: (2) RJ45 female connectors
• DC Spark-Over Voltage: 90V @ 100V/s
• Max. Impulse Spark-Over Voltage: 600V @ 1kV/µs
• Discharge Current: 20kA
• Insulation: Max. Resistance: 1G ohm @ 50V
• Max. Capacitance: 1.0 pF @ 1 MHz
• Data Line Protection: Up to 10 Gbps
• PoE Support: Yes
• ESD/EMP Protection: Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
• Ambient Operating Temperature: -40° to +80° C (-40° to 176° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
