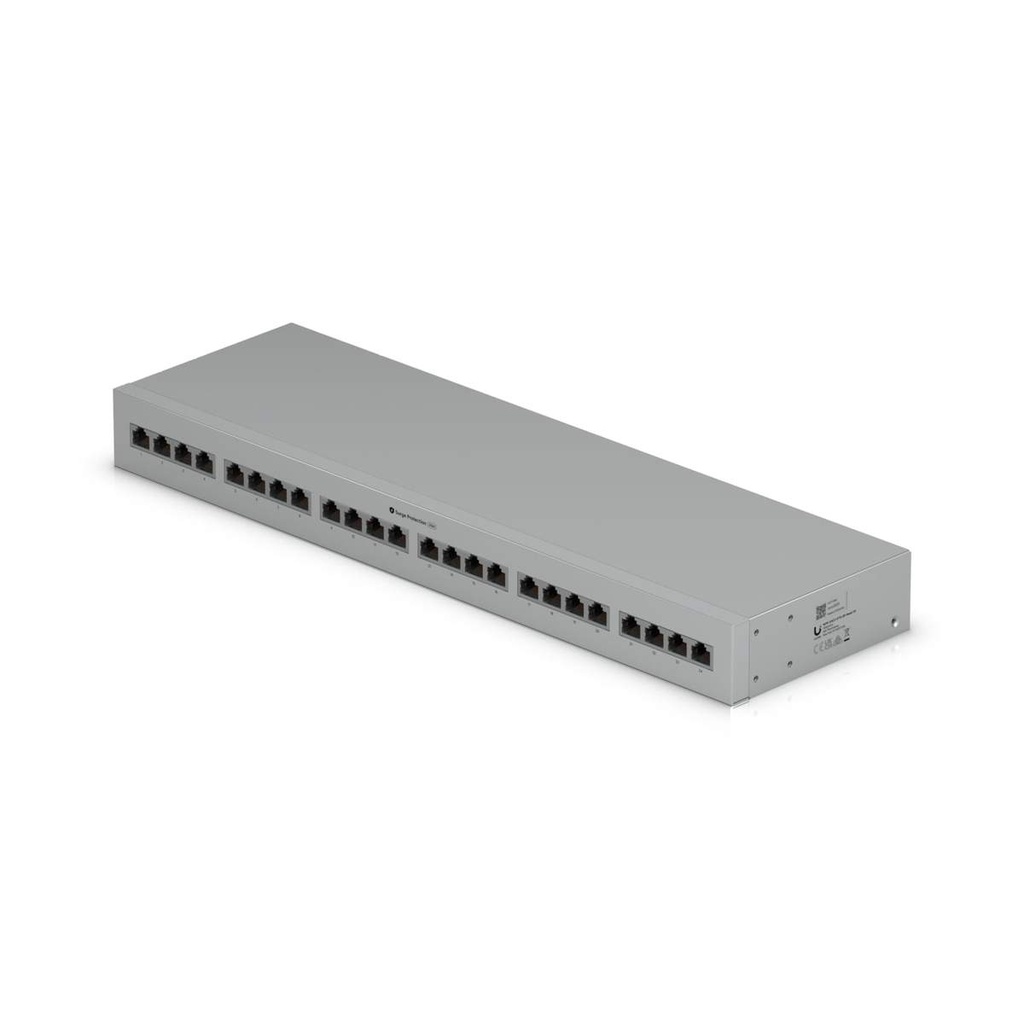

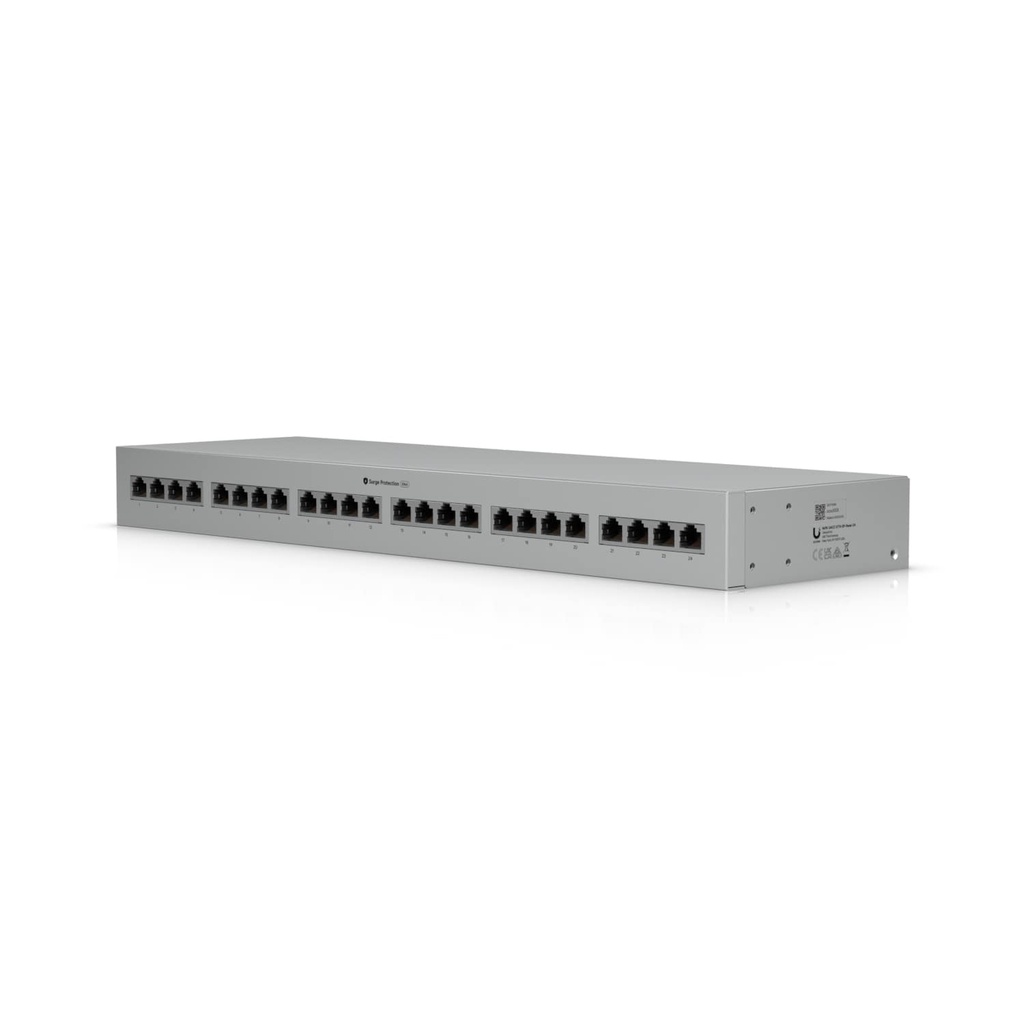

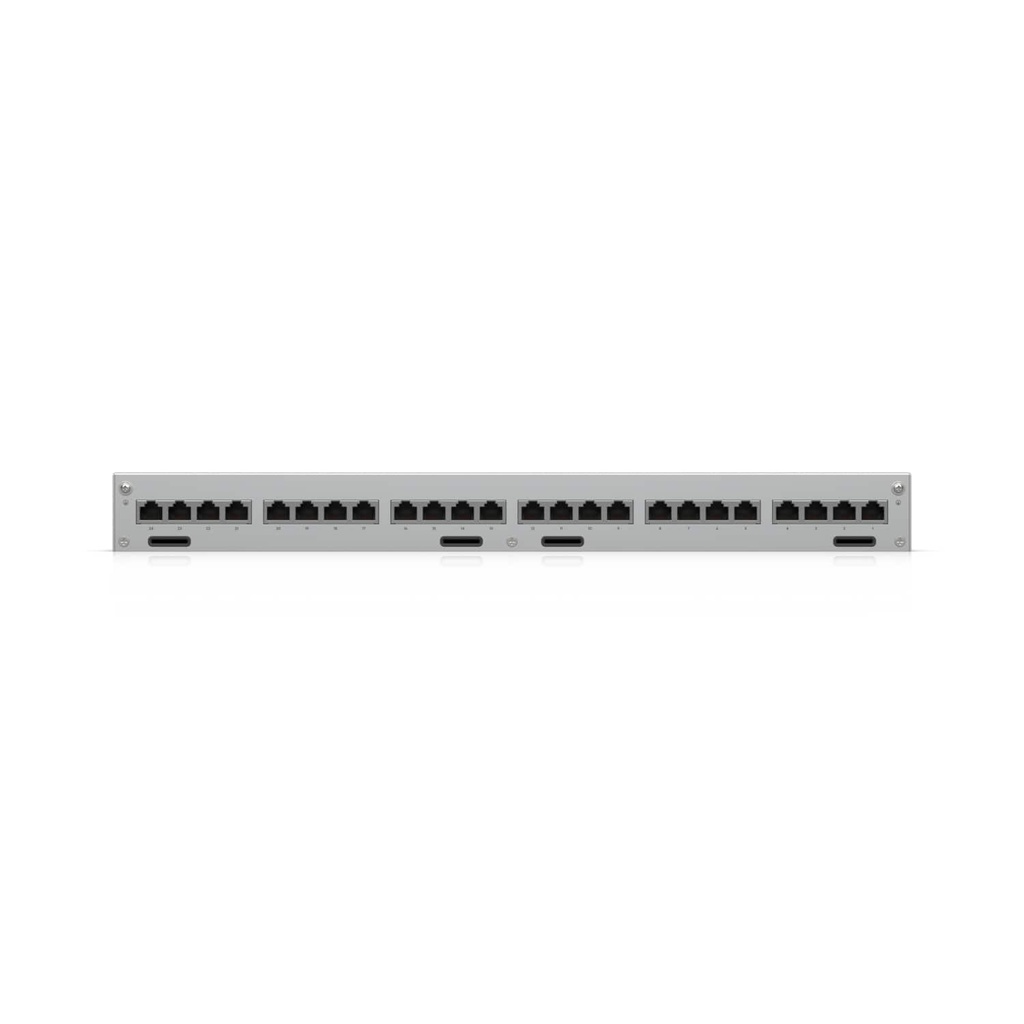

Ubiquiti Ethernet Surge Protection,Rack-mount Indoor Panel Supports Up To 10 GbE, PoE++, 20kA Surge Discharge/Port,24-port Integrated,1U Rack-mount

Ubiquiti Ethernet Surge Protection

SKU: UACC-ETH-SP-Panel-24

Description:
Rack-mount indoor panel supports up to 10 GbE, PoE++, and 20kA surge discharge per port.

Features:

• 24-port integrated
• 1U rack-mount design

Category: Network - UniFi / Console / Gateway

Mechanical

• Dimensions: 442.4 x 134 x 43.7 mm (17.4 x 5.3 x 1.7")
• Weight: 2 kg (4.4 lb)
• Enclosure Material: SGCC steel

Hardware

• Networking Interface: (48) RJ45 female connectors
• DC Spark-Over Voltage: 90V @ 100V/s
• Max. Impulse Spark-Over Voltage: 600V @ 1kV/µs
• Discharge Current: 20kA
• Insulation: Max. Resistance: 1G ohm @ 50V
• Max. Capacitance: 1.0 pF @ 1 MHz
• Data Line Protection: Up to 10 Gbps
• PoE Support: Yes
• ESD/EMP Protection: Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
• Ambient Operating Temperature: -40° to +80° C (-40° to 176° F)
• Ambient Operating Humidity: 10 to 90% noncondensin
