Ubiquiti PoE Adapter,Power UniFi PoE+ Devices, Reduce Dependency on PoE Switch Power, Provide a Multi-Gigabit LAN Connection,30W of PoE+

Ubiquiti 2.5G PoE+ Adapter (30W)

SKU: UACC-PoE+-2.5G

Description:
An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

Features:

• Delivers up to 30W of PoE+
• Surge, peak pulse, and overcurrent protection

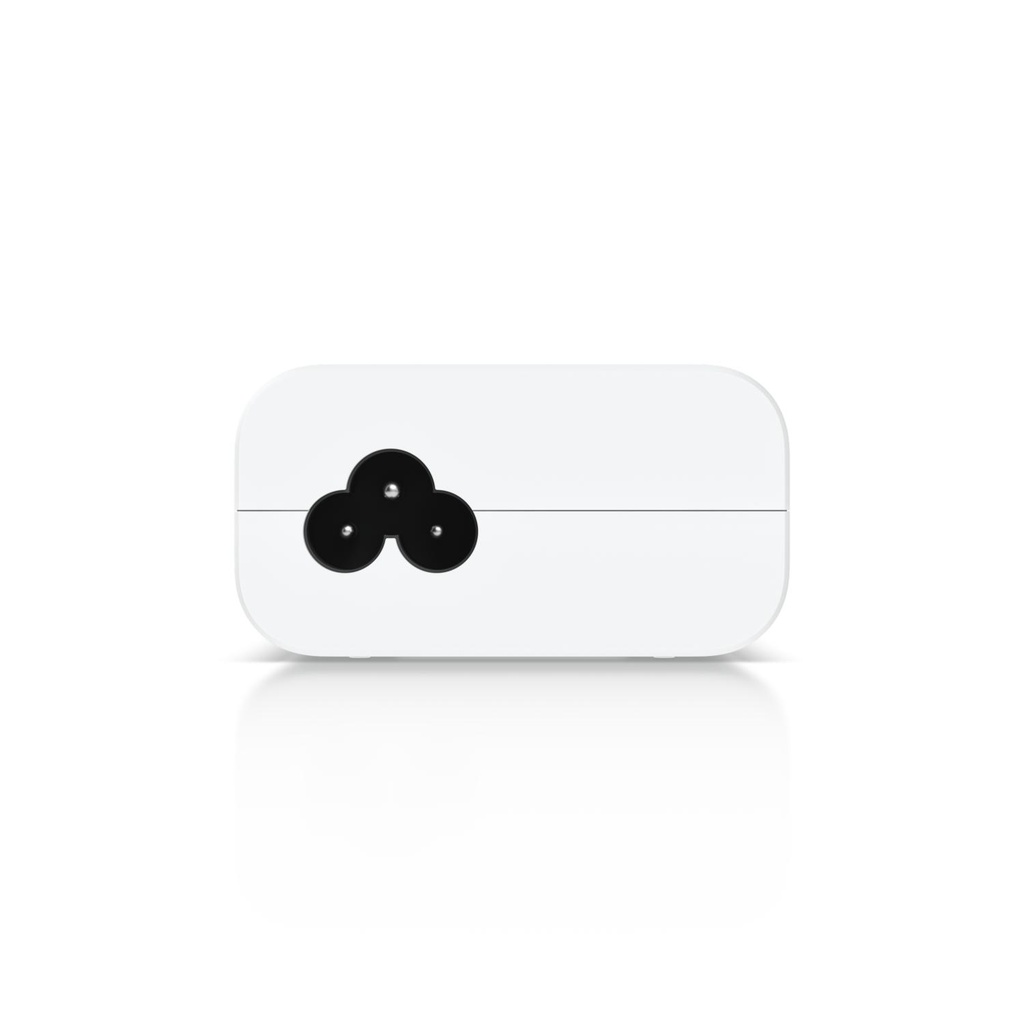

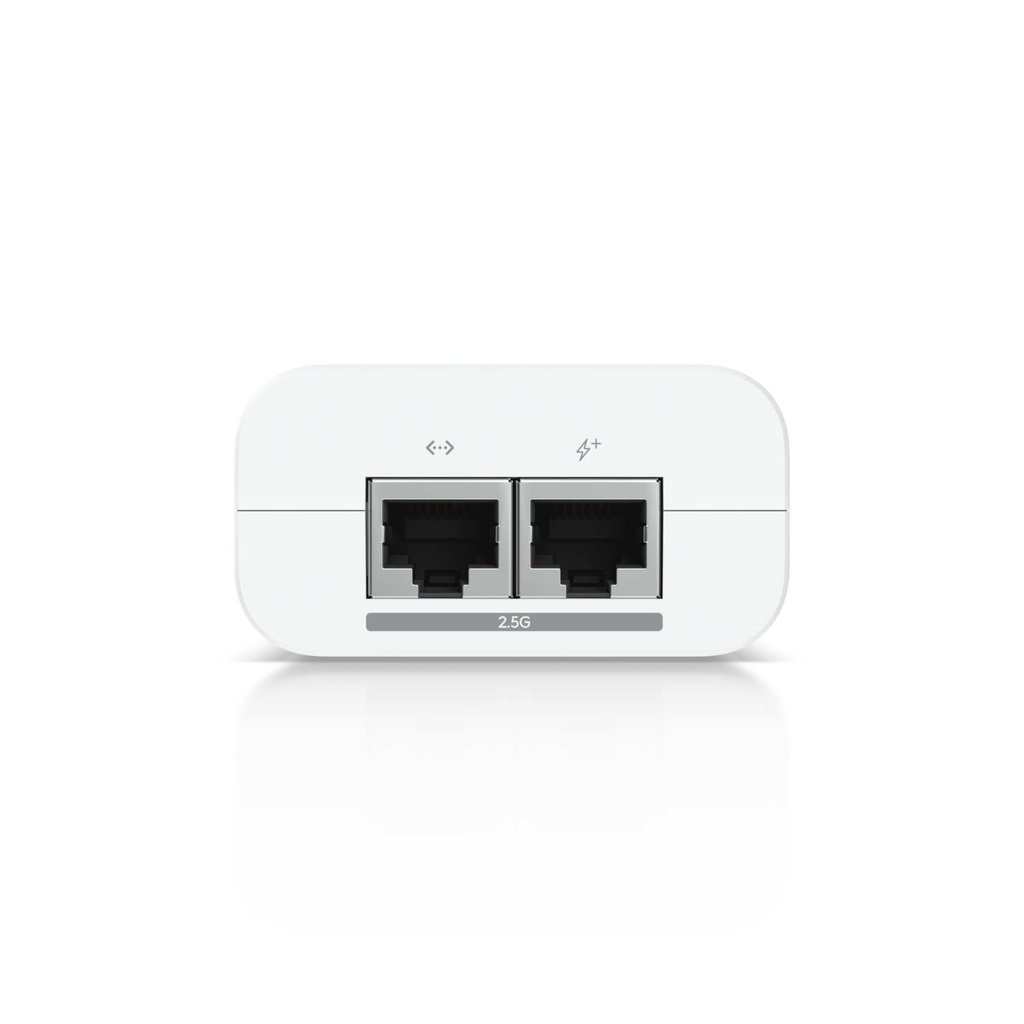

• Contains RJ45 data input, AC cable with earth ground, and PoE+ output
• LED indicator for status monitoring

Category: Network - UniFi / POE & 31

Overview

• Dimensions: 93 x 62 x 35 mm (3.7 x 2.4 x 1.4")
• Weight: 156 g (5.5 oz)
• Output Voltage: 48V DC @ 0.65A
• Rated Voltage: 100–240V AC at 50/60Hz
• Gigabit LAN Port: Yes
• 2-pair Powering: Pins 4, 5 (+) and 7, 8 (-)
• Clamping Protection: 11V Data, 60V power
• Data In / PoE: RJ45 Shielded Socket
• Input Current: 0.75A Max.
• Inrush Current: <150A peak @ 230V AC
• Efficiency: >87%
• Switching Frequency: 65 kHz Max.
• Output Ripple: 1% Max.
• Line Regulation: ≤ 1%
• Load Regulation: ≤ 3%
• Max. Surge Discharge: 1500A (8/20 μs) power
• Peak Pulse Current: 36A (10/1000 μs) data
• Response Time: <1 ns
• Shunt Capacitance: <5 pF data
• Surge Protection: Difference and common mode
• Ambient Storage Temperature: -30 to 70°C (-22 to 158° F)
• Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
• Ambient Operating Humidity: 10 to 95% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
