Ubiquiti Cloud Gateway Industrial,Ruggedized, Fanless 10 GbE UniFi Cloud Gateway Delivering 350W, High-Density PoE, Advanced Routing, MicroSD Storage.

Ubiquiti Cloud Gateway Industrial

SKU: UCG-Industrial

Description:
Ruggedized, fanless 10 GbE UniFi Cloud Gateway delivering 350W of total system power for high-density PoE deployments, with advanced routing capabilities and microSD storage for full UniFi application support.

Category: Network - UniFi / Console / Gateway

Overview

• Dimensions: Device: 307.9 x 203.5 x 43.7 mm
  (12.1 x 8 x 1.7")

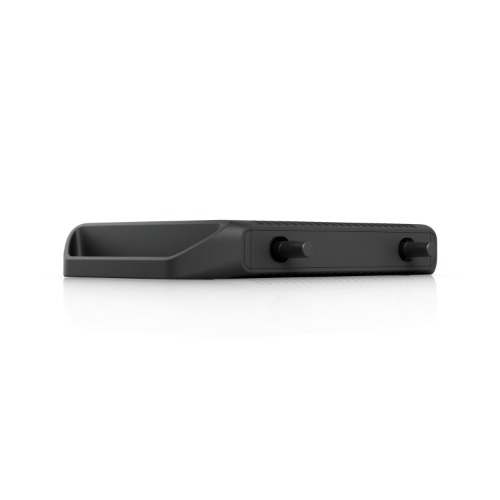

  Table stand: 203.5 x 100.2 x 21.9 mm
  (8 x 3.9 x 0.9")
• UniFi Application Suite
• Network: Yes
• Protect: Yes
• Access: Yes
• Talk: Yes
• Connect: Yes
• Managed UniFi Devices: 50+
• Managed Cameras: (15) HD
  (8) 2K
  (5) 4K
• Managed Access Hubs: 50
• Simultaneous Users Connected: 500+
• Max. WAN Port Count: 5
• Default WAN Ports: (1) 10G SFP+
  (1) 10 GbE RJ45
  (1) 2.5 GbE RJ45

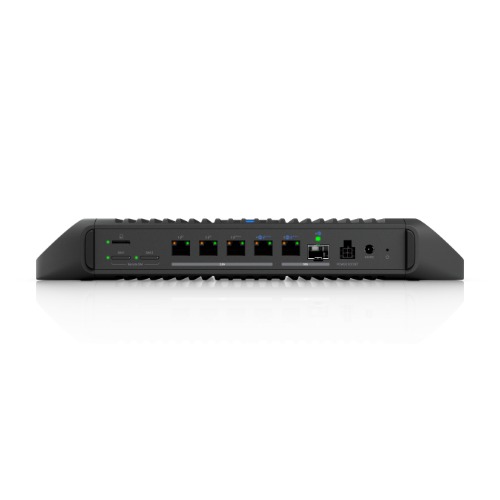

• Port Layout
• 2.5 GbE RJ45: 4 (2 PoE+++, 2 PoE+)
  (2.5G/1G/100M)
• 10 GbE RJ45: 1 (PoE+++)
  (10G/5G/2.5G/1G/100M)
• 10G SFP+: 1
  (10G/1G)
• IDS/IPS Throughput: 5 Gbps
• Form Factor: Wall-mounted
  Compact desktop (Table stand included)
  Rack mount (Accessory sold separately)
• Coverage Area: 115 m² (1,250 ft²)

Security

• Stateful Firewall: Yes
• Application-Aware Layer 7 Firewall: Yes
• DPI & Traffic Identification: Yes
• Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): Yes
• Content Filtering: Yes
• Intrusion Prevention (IPS/IDS): Yes
• Ad Blocking: Yes
• IDS/IPS Signatures: 55,000+ with CyberSecure
• VLAN/Subnet-based Traffic Segmentation: Yes

VPN & SD-WAN

• License-Free SD-WAN: Yes
• Site-to-Site VPN
• Site Magic: Yes
• IPsec: Yes
• OpenVPN: Yes
• VPN Server
• Identity Endpoint One-Click VPN: Yes
• Teleport Zero-Configuration VPN: Yes
• WireGuard: Yes
• OpenVPN: Yes
• L2TP: Yes
• VPN Client
• OpenVPN: Yes
• WireGuard: Yes

Networking

• Multi-WAN Load Balancing: Yes
• Dynamic Routing
• OSPF: Yes
• BGP: Yes
• Advanced QoS: Yes
• Multicast DNS (mDNS): Yes
• Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): Yes
• Integrated RADIUS Server: Yes
• RADIUS over TLS (RadSec): Yes
• Additional Internet Failover with UniFi LTE Backup: Yes
• Internet Quality and Outage Reporting: Yes
• MAC Address Table Size: 4,000
• Virtual Network Override: Yes

Integrated WiFi

• WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
• Throughput
• 5 GHz: 4.3 Gbps
• 2.4 GHz: 688 Mbps
• MIMO
• 5 GHz: 2 x 2 (DL/UL MU-MIMO)
• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
• Antenna Gain
• 5 GHz: Stub antenna: 5 dBi
  Terminal (Omni) antenna: 6 dBi
• 2.4 GHz: Stub antenna: 3 dBi
  Terminal (Omni) antenna: 6 dBi
• Max. TX Power
• 5 GHz: 26 dBm
• 2.4 GHz: 23 dBm
• Supported Data Rates
• 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
• 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
• 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Hardware

• NVR Storage: Pre-installed 128 GB microSD for NVR
• Expansion Slot: MicroSD Card (128 GB pre-installed microSD)
• PoE Budget: DC input: 270W
  ATX power: 75W
• Max. PoE Wattage per Port by PSE
• PoE+: 30W
• PoE+++: 90W
• Voltage Range PoE Mode: 50-57V
• Max. Power Consumption: 28W (Excluding PoE output)
• Power Method: (1) DC Input (350W PSU)
  (1) ATX power (48V)
• Power Supply: 54V DC, 350W (Adapter included)
  ATX power (48V)
• Supported Voltage Range: 100–240V AC
• Heat Dissipation: 95 BTU/hr (Excluding PoE output)
• Processor: Quad-core ARM® Cortex®-A73 at 2.2 GHz
• System Memory: 3 GB
• Weight: Device: 2.4 kg (5.3 lb)
  Table stand: 321 g (11.3 oz)
• Enclosure Material: Device: Polycarbonate, aluminium alloy
  Table stand: Polycarbonate, galvanized steel, silicone rubber
• Management: Ethernet
  Bluetooth
• LEDs
• Ethernet: Yes
• SFP+: Yes
• System: Yes
• MicroSD: Yes
• SIM: Yes
• Button: (1) Factory reset
  (2) Handle release buttons
• ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
• Ambient Operating Temperature: -30 to 50° C (-22 to 122° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC

Software

• Application Requirements
• Mobile App: UniFi iOS™: Version 10.32.0 and later
  UniFi Android™: Version 10.35.0 and later
