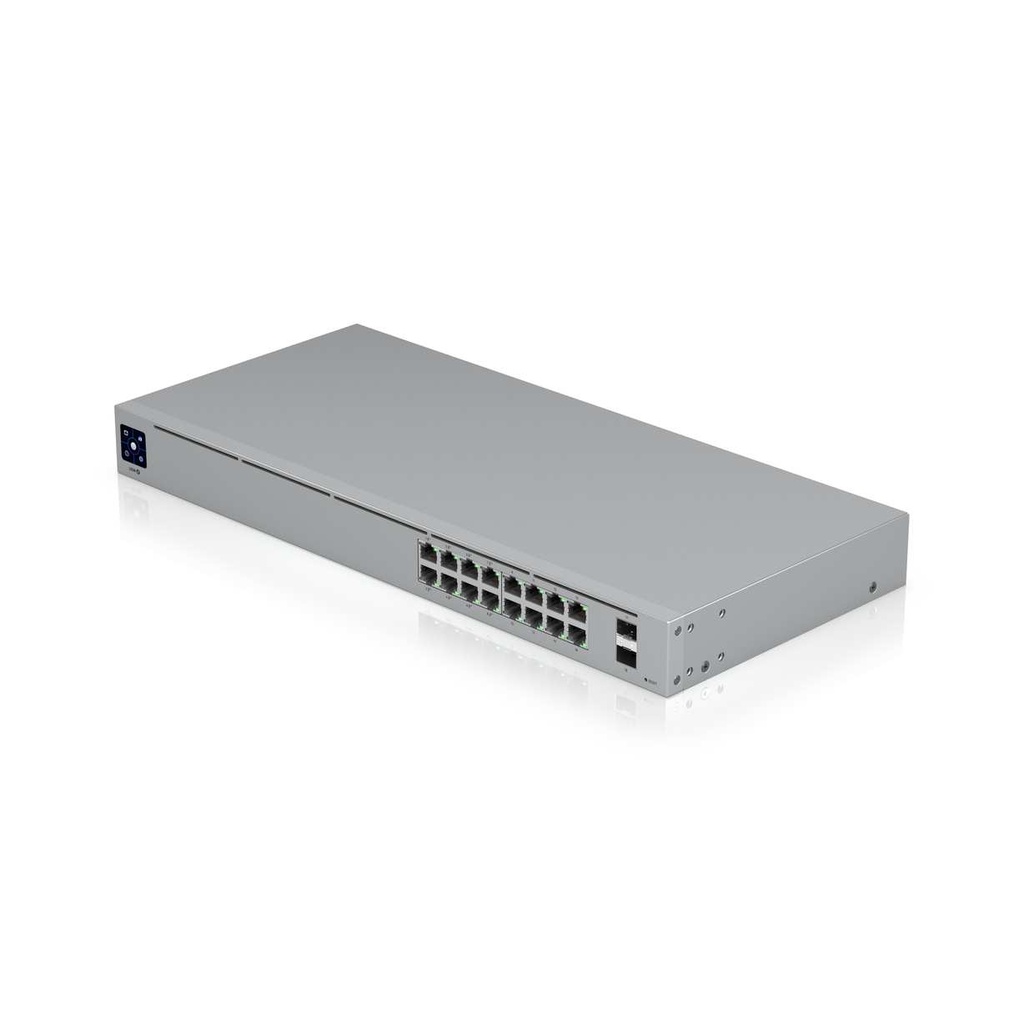

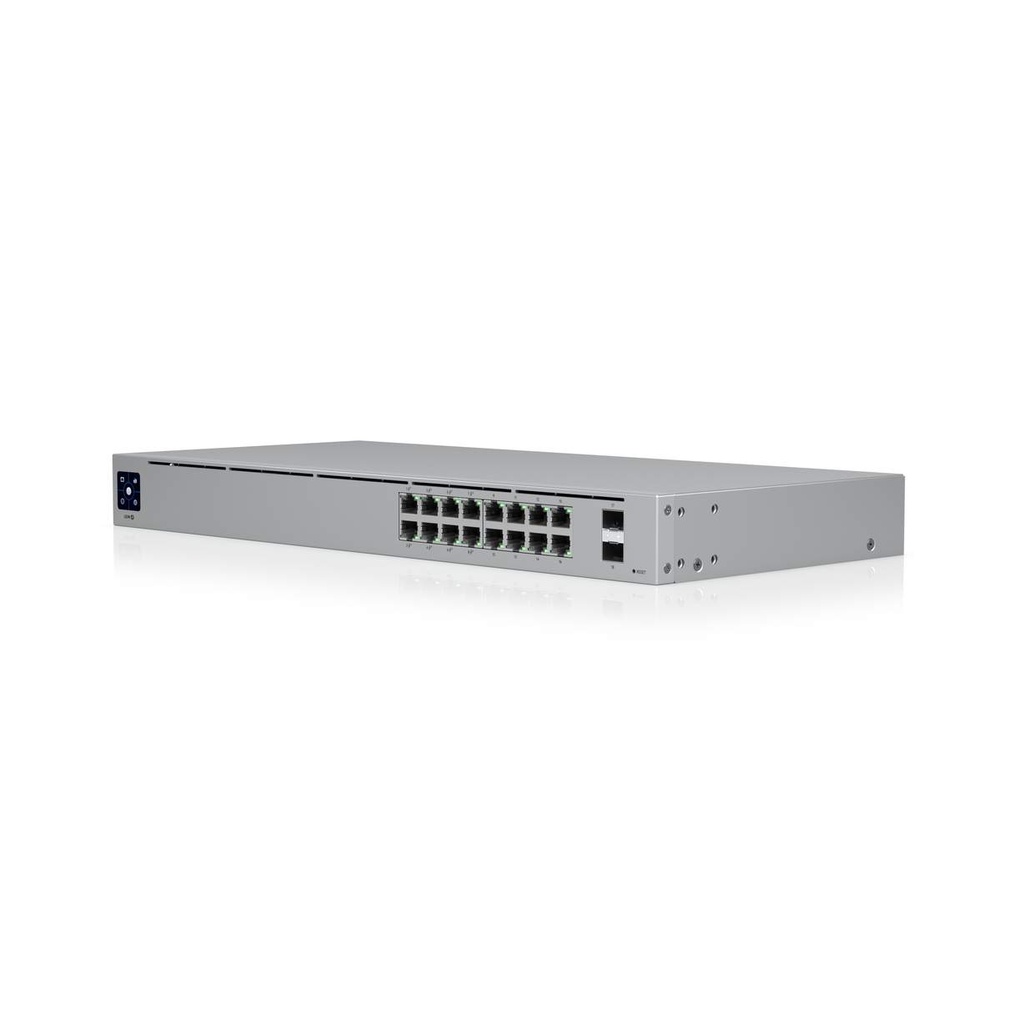

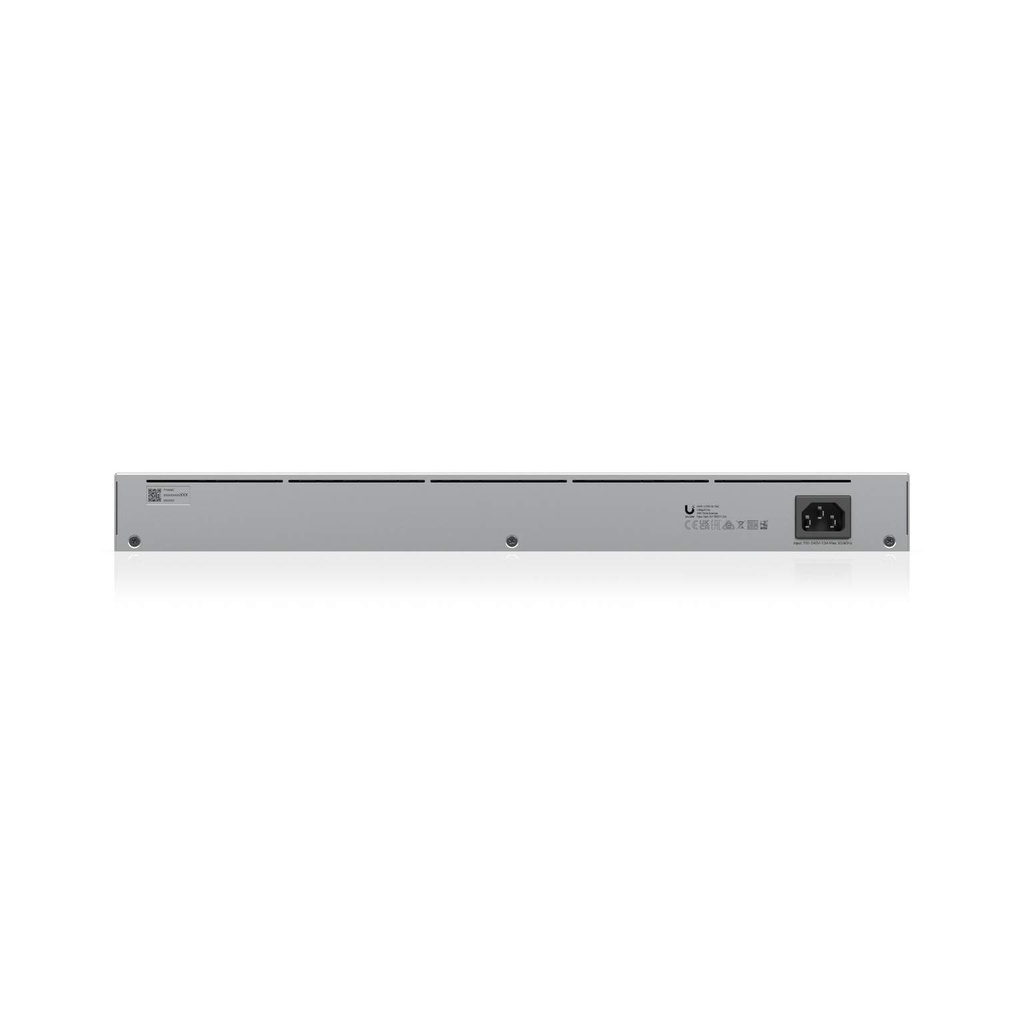

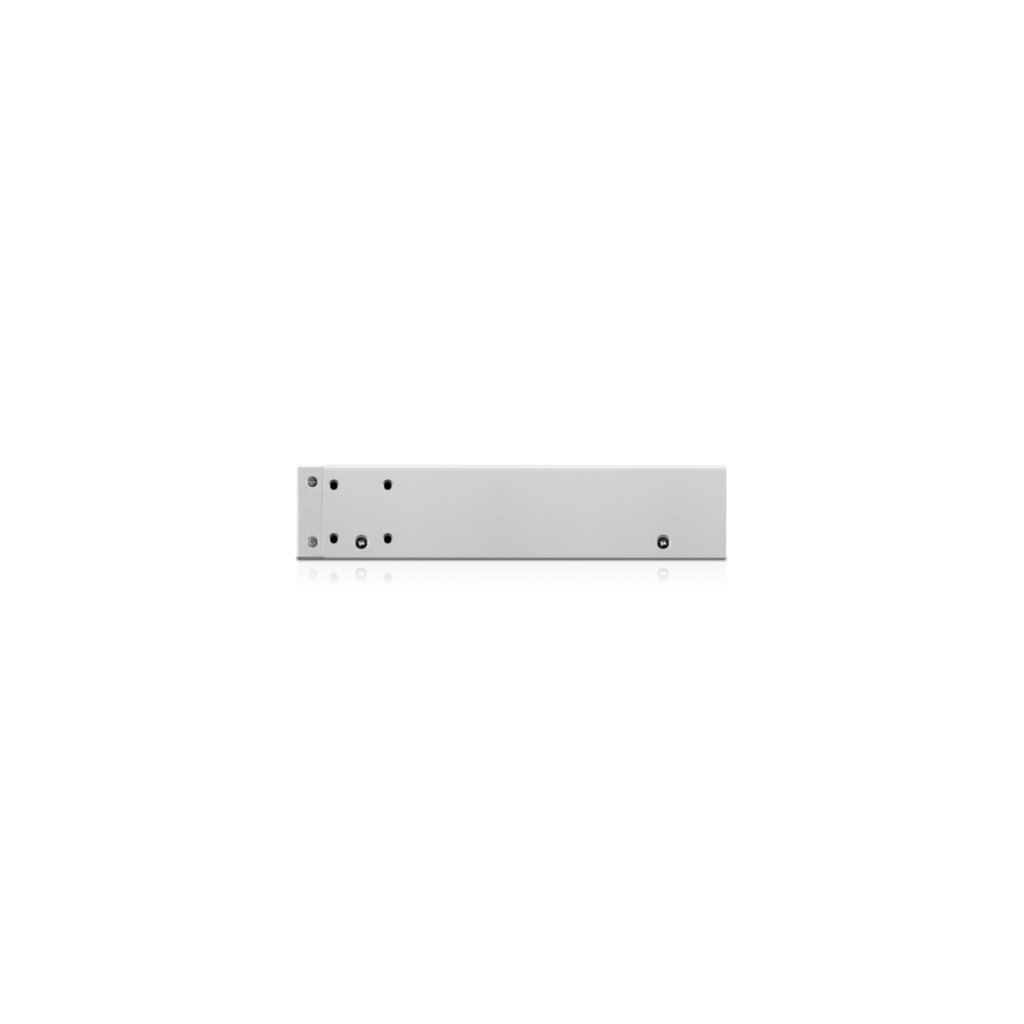

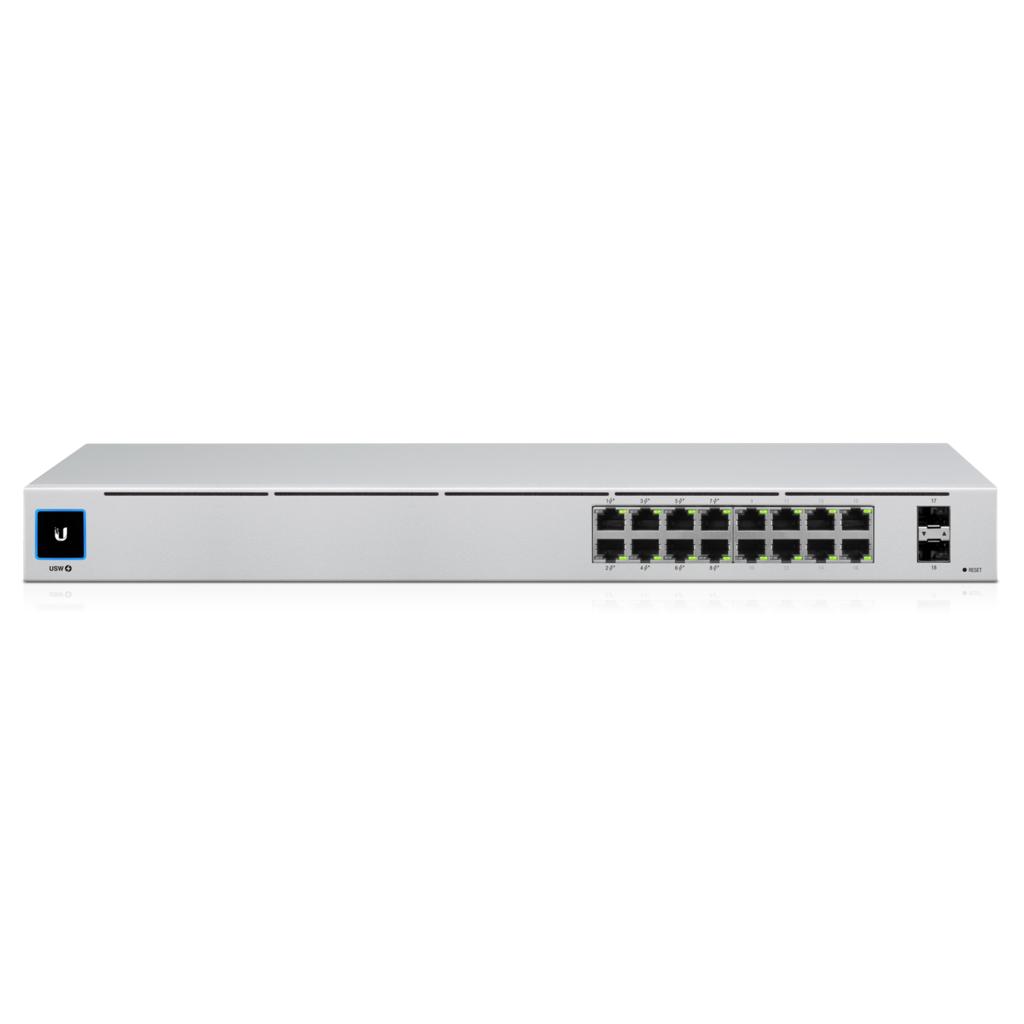

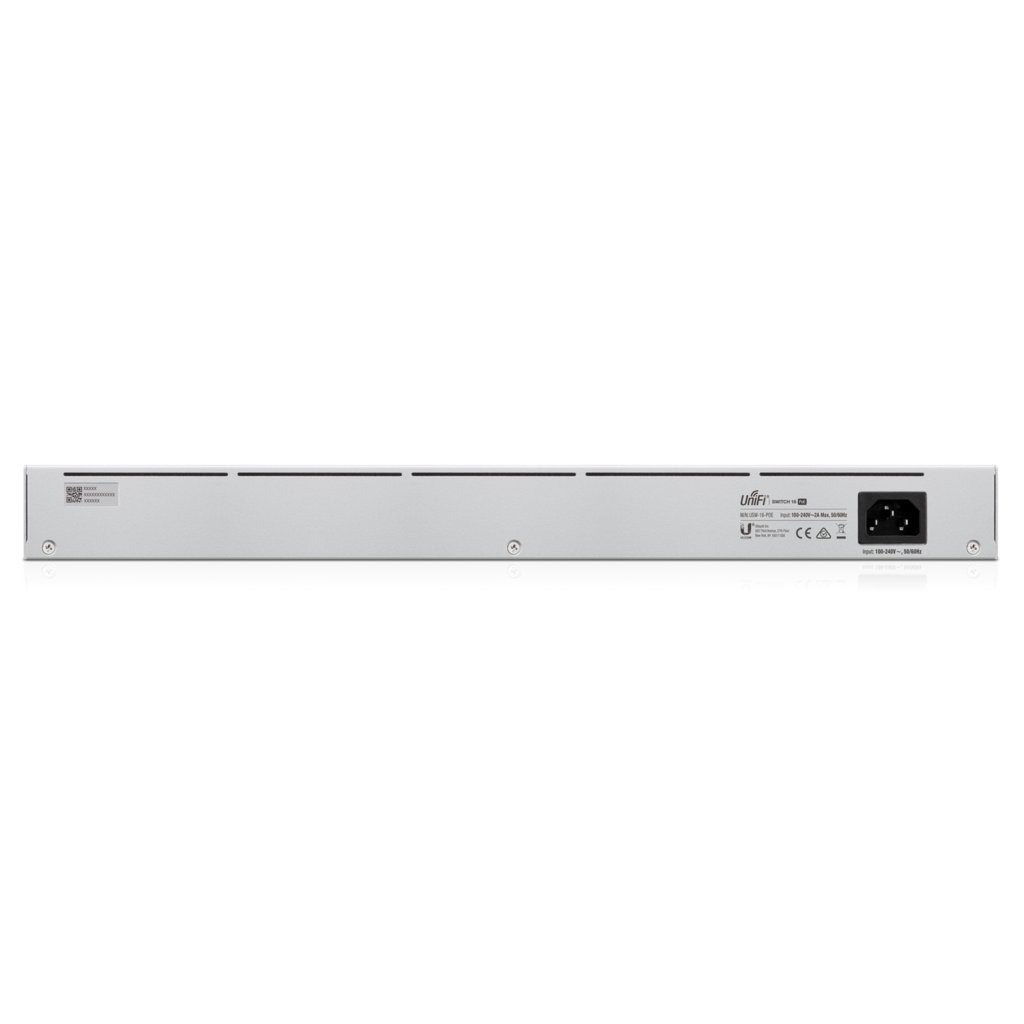

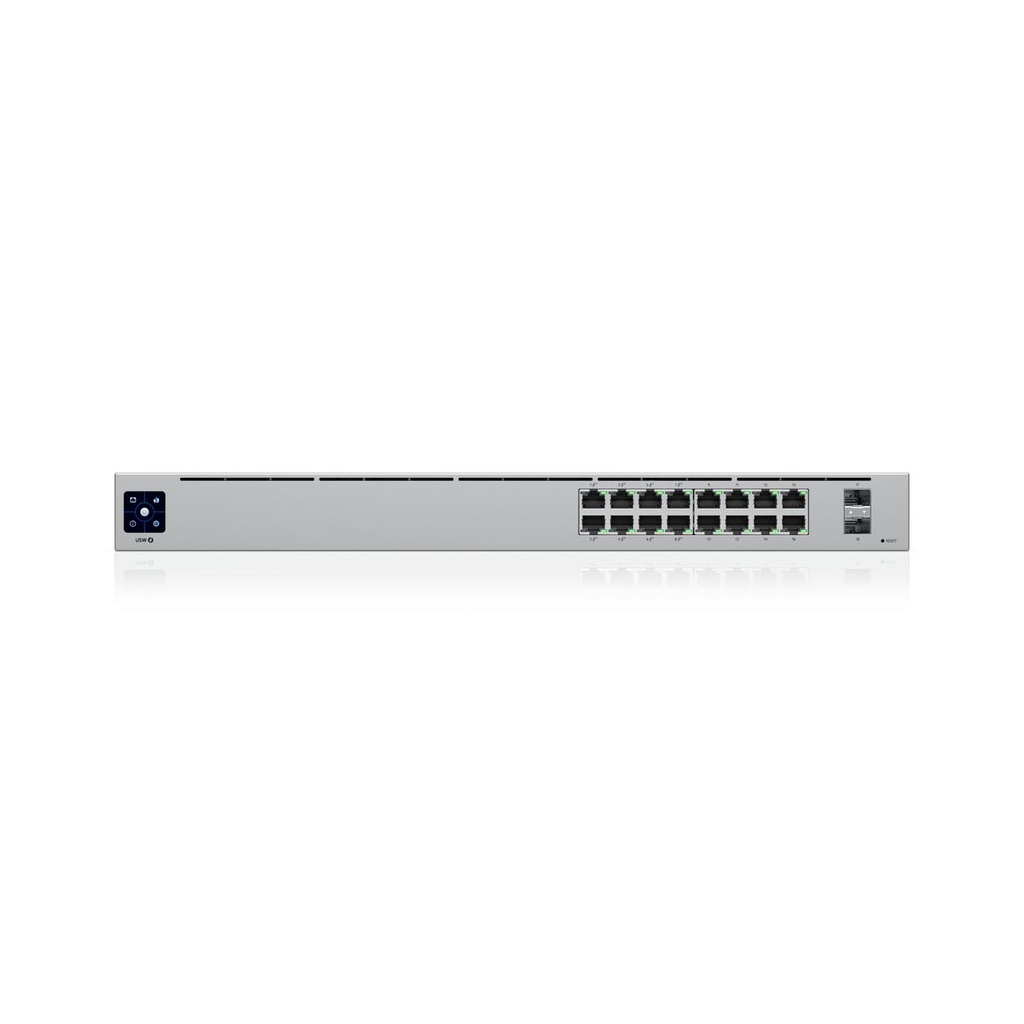

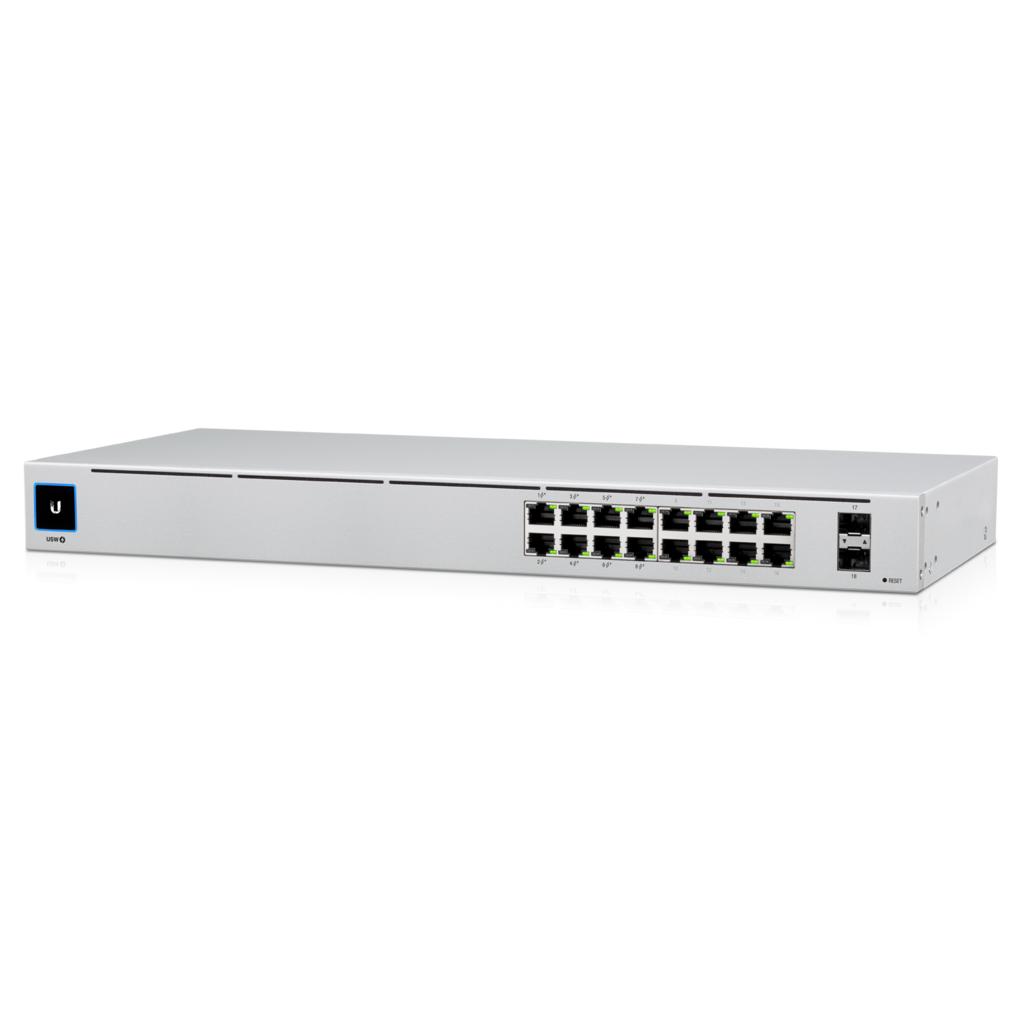

Ubiquiti UniFi 16-port Managed Gigabit Switch - 8x PoE+ Ports, 8x Gigabit Ethernet Ports, 2x SFP , 42W, Touch Display, Fanless , GEN2,

Ubiquiti Standard 16 PoE

SKU: USW-16-POE

Description:A 16-port, Layer 2 PoE switch with a silent, fanless cooling system.

Features:

• (8) GbE PoE+, (8) GbE ports
• (2) 1G SFP ports
• 42W total PoE availability
• Fanless, silent cooling

Category: Network - UniFi / Switching

Overview

• Dimensions: 442 x 200 x 44 mm
  (17.4 x 7.9 x 1.7")
• Port Layout
• 1 GbE RJ45: 16 (8 PoE+)
  (1G/100M/10M)
• 1G SFP: 2
  (1G)
• Max. PoE Output: Up to PoE+
• Total PoE Availability: 42W
• Form Factor: Rack mount (1U)

Performance

• Switching Capacity: 36 Gbps
• Total Non-Blocking Throughput: 18 Gbps
• Forwarding Rate: 27 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 8,000
• Packet Buffer Size: 0.5 MB
• Access Lists
• IPv4: 128
• MAC: 128

Layer 2 Features

• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• PoE Ports
• PoE+: 8
• Max. PoE Wattage per Port by PSE
• PoE: 15.4W
• PoE+: 32W
• Max. Power Consumption: 18W (Excluding PoE Output)
  60W (Including PoE Output)
• Power Method: Universal input, 100–240V AC, 50/60 Hz
• Power Input Method: AC input
• Power Supply: AC/DC, internal, 60W
• Supported Voltage Range: 100–240V AC
• Management: Ethernet
  AR
• Heat Dissipation: 61.4 BTU/hr
• Weight: Without mounting brackets: 2.8 kg (6.2 lb)
  With mounting brackets 2.9 kg (6.4 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 400~1200 mm
  (15.7-47.2")
• LCM Display: 1.3" touchscreen
• ESD Protection: Air: ± 16kV, contact: ± 12kV
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 00593-21-08356

Software

• Application Requirements
• UniFi Network: Version 7.2.94 and later
