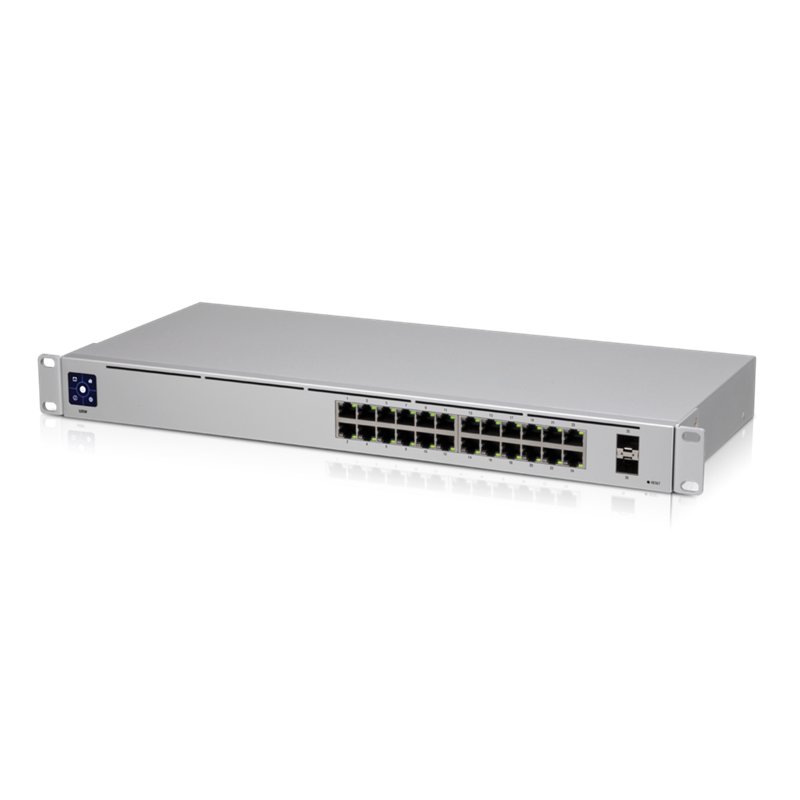

Ubiquiti UniFi 24 port Managed Gigabit Switch - 24x Gigabit Ethernet Ports, with 2xSFP - Touch Display - Fanless - GEN2,

Ubiquiti Standard 24

SKU: USW-24

Description:The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.

Features:

• (24) GbE ports
• (2) 1G SFP ports
• Fanless, silent cooling
• 1.3" color touchscreen for status information
• Managed by UniFi Network Controller

Category: Network - UniFi / Switching

Overview

• Dimensions: 442 x 200 x 44 mm
  (17.4 x 7.9 x 1.7")
• Port Layout
• 1 GbE RJ45: 24
  (1G/100M/10M)
• 1G SFP: 2
  (1G)
• Form Factor: Rack mount (1U)

Performance

• Switching Capacity: 52 Gbps
• Total Non-Blocking Throughput: 26 Gbps
• Forwarding Rate: 39 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 8,000
• Packet Buffer Size: 0.5 MB
• Access Lists
• IPv4: 128
• MAC: 128

Layer 2 Features

• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• Max. Power Consumption: 25W
• Power Method: Universal input, 100–240V AC, 50/60 Hz
• Power Input Method: AC input
• Power Supply: AC/DC, internal, 36W
• Supported Voltage Range: 100–240V AC
• Management: Ethernet
  AR
• Heat Dissipation: 85.3 BTU/hr
• Weight: Without mounting brackets: 2.7 kg (6 lb)
  With mounting brackets: 2.8 kg (6.2 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 400~1200 mm
  (15.7-47.2")
• LCM Display: 1.3" touchscreen
• Ambient Operating Temperature: -5 to 45° C (23 to 113° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 17193-20-08356

Software

• Application Requirements
• UniFi Network: Version 7.2.94 and later
