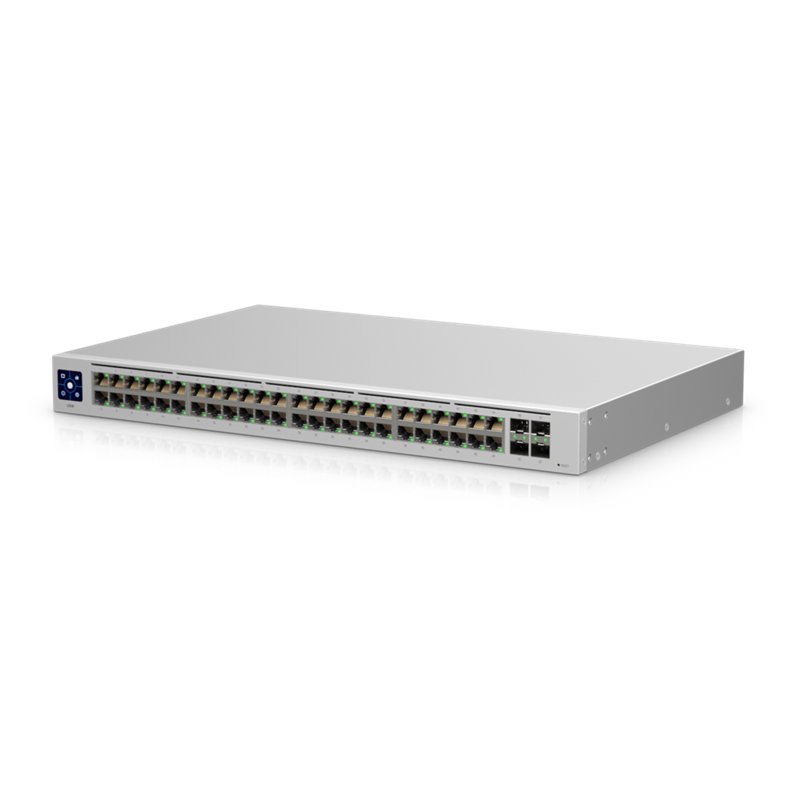

Ubiquiti UniFi USW-48, 48-port Managed Gigabit Layer2 Switch - 48x Gigabit Ethernet Ports 4x SFP Port Touch Display,

Ubiquiti Standard 48

SKU:USW-48

Description: The UniFi Switch 48 features a rich set of Layer 2 capabilities and fanless, silent cooling for use as an access layer switch. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

Features:

• (48) GbE ports
• (4) 1G SFP ports
• Fanless, silent cooling
• 1.3" touchscreen display, supports UniFi Network AR
• Managed by UniFi Network Controller (5.13.10 or later)

Category: Network - UniFi / Switching

Overview

• Dimensions: 442 x 285 x 44 mm
  (17.4 x 11.2 x 1.7")
• Port Layout
• 1 GbE RJ45: 48
  (1G/100M/10M)
• 1G SFP: 4
  (1G)
• Form Factor: Rack mount (1U)

Performance

• Switching Capacity: 104 Gbps
• Total Non-Blocking Throughput: 52 Gbps
• Forwarding Rate: 77 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 16,000
• Packet Buffer Size: 1.5 MB
• Access Lists
• IPv4: 128
• MAC: 128

Layer 2 Features

• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• Max. Power Consumption: 40W
• Power Method: Universal input, 100–240V AC, 50/60 Hz
• Power Input Method: AC input
• Power Supply: AC/DC, internal, 60W
• Supported Voltage Range: 100–240V AC
• Management: Ethernet
  AR
• Heat Dissipation: 136.5 BTU/hr
• Weight: Without mounting brackets: 3.9 kg (8.6 lb)
  With mounting brackets: 4 kg (8.8 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 400~1200 mm
  (15.7-47.2")
• LCM Display: 1.3" touchscreen
• Ambient Operating Temperature: -15 to 40° C (5 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 17193-20-08356

Software

• Application Requirements
• UniFi Network: Version 7.2.94 and later
