Ubiquiti Switch Enterprise 24-port Switch 24x10GbE Ports, 2x 25G SFP28 Ports For Uplinks, Managed Layer 3 Switch,

Ubiquiti EnterpriseXG 24

SKU: USW-EnterpriseXG-24

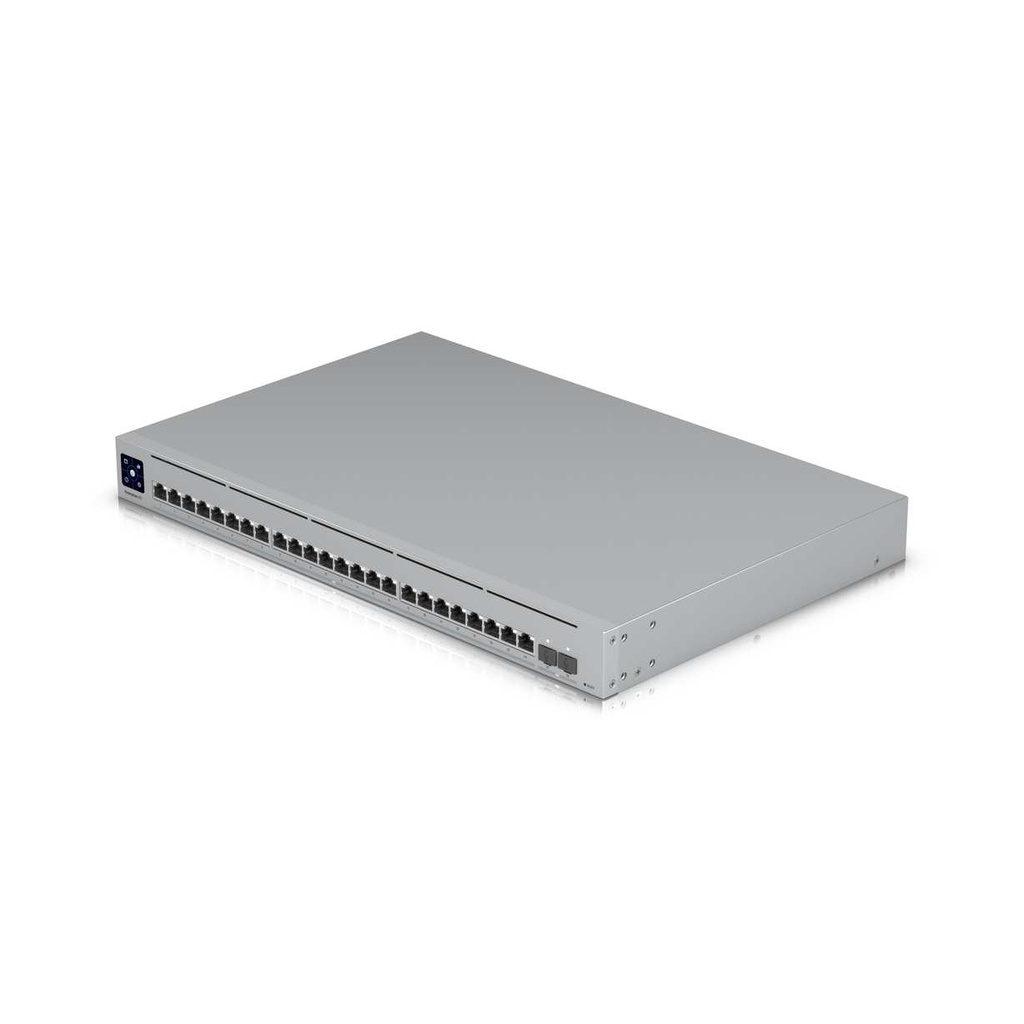

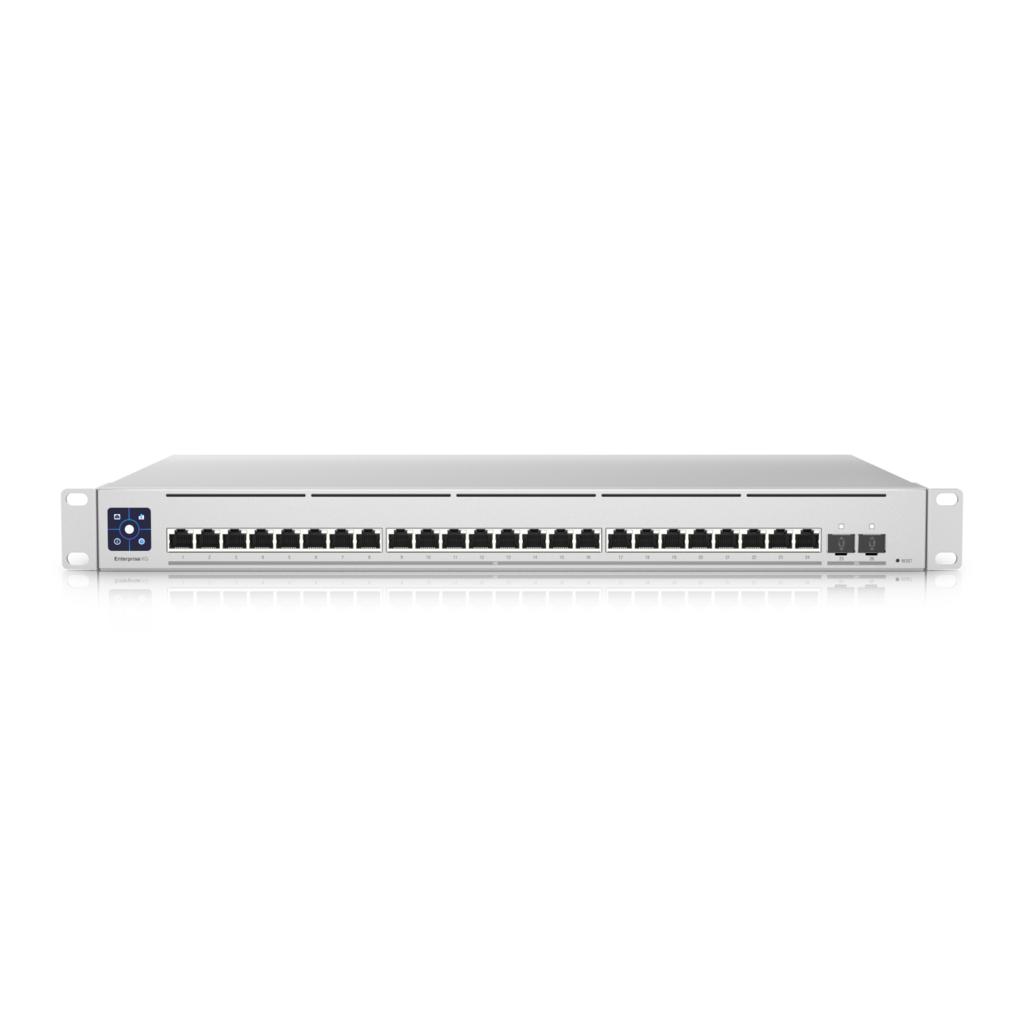

Description: The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, mult-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise XG 24 offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:

• (24) 10 GbE ports
• (2) 25G SFP28 ports
• DC power backup-ready
• Layer 3 switching
• (1) 1.3" LCM color touchscreen with AR switch management
• (1) USP RPS DC input

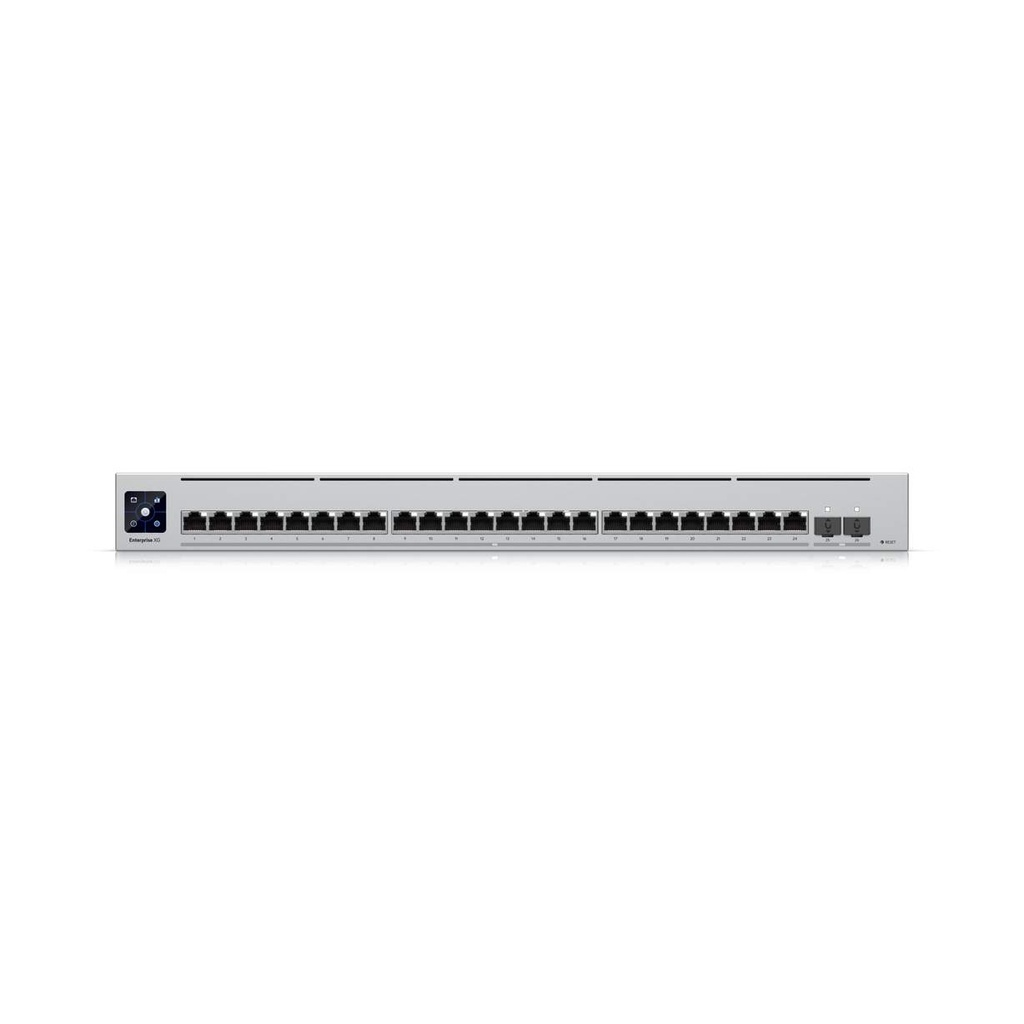

• Single-row RJ45 port layout for easy patch panel cable management

Category: Network - UniFi / Switching

Overview

• Dimensions: 442 x 285 x 44 mm
  (17.4 x 11.2 x 1.7")
• Port Layout
• 10 GbE RJ45: 24
  (10G/5G/2.5G/1G/100M)
• 25G SFP28: 2
  (25G/10G/1G) (The two SFP28 ports don't support mixed speed data 25Gbps mode.
Once one of the SFP28 ports is configurated to a 25Gbps mode, the others will be limited at 25Gbps too. The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.)
• Redundancy: DC Power Backup (With UniFi RPS)
• Layer 3: Yes
• Form Factor: Rack mount (1U)

Performance

• Switching Capacity: 580 Gbps
• Total Non-Blocking Throughput: 290 Gbps
• Forwarding Rate: 432 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 32,000
• IPv4 Static Routes: 256
• Packet Buffer Size: 4 MB
• Access Lists
• IPv4: 128
• MAC: 128

Layer 3 Features

• DHCP Server (Local Networks): Yes
• DHCP Relay: Yes
• Inter-VLAN Routing (Local Networks): Yes
• Static Routing (Local Networks): Yes

Layer 2 Features

• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• QoS (DSCP): Yes
• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• Max. Power Consumption: 100W

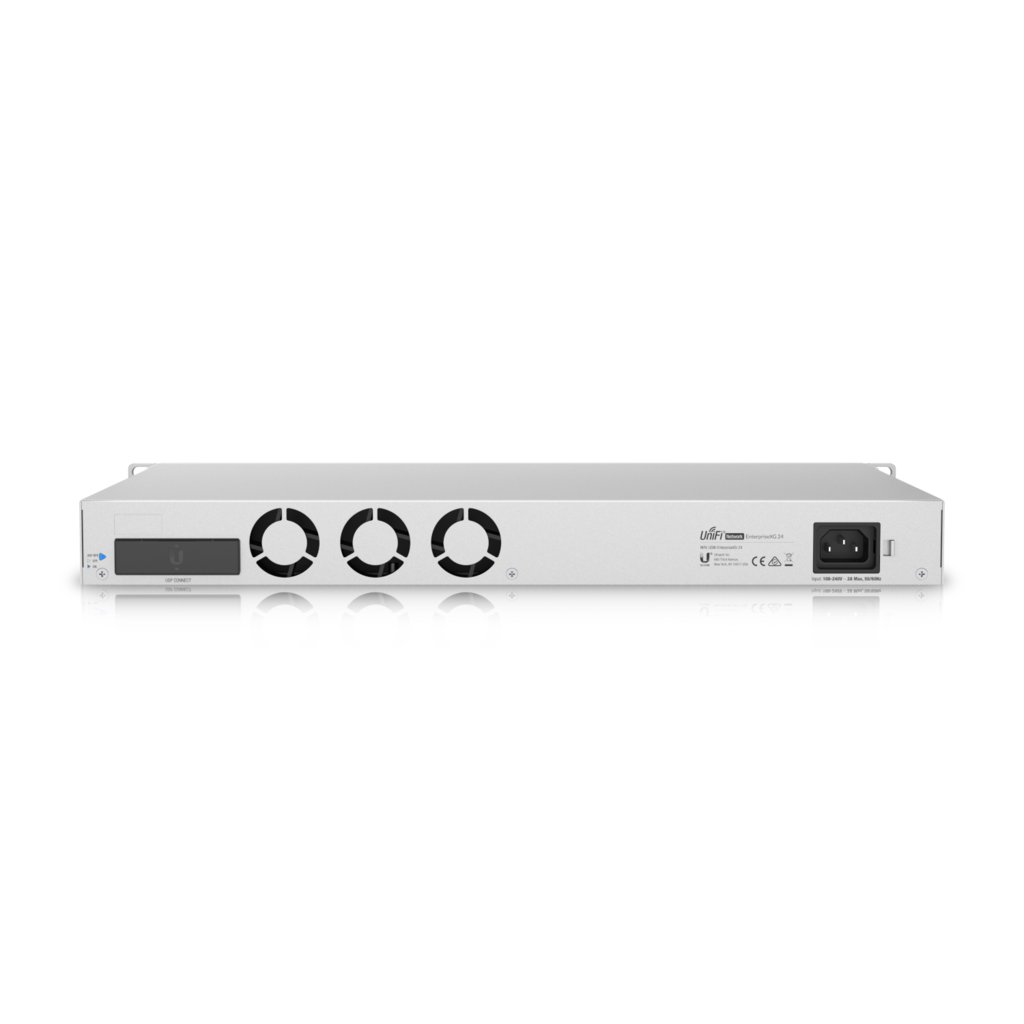

• Power Method: (1) Universal input, 100–240V AC, 50/60 Hz
  (1) USP RPS DC input
• Power Input Method: AC input
• Power Supply: AC/DC, internal, 100W
• Supported Voltage Range: 100–240V AC
• Management: Ethernet
  AR
• Heat Dissipation: 341.2 BTU/hr
• Weight: Without mounting brackets: 4.5 kg (9.9 lb)
  With mounting brackets: 4.6 kg (10.1 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 400~1200 mm
  (15.7-47.2")
• LCM Display: 1.3" touchscreen
• ESD Protection: Air: ± 16kV, contact: ± 12kV
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 95% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 06007-24-08356

Software

• Application Requirements
• UniFi Network: Version 6.1.67 and later
