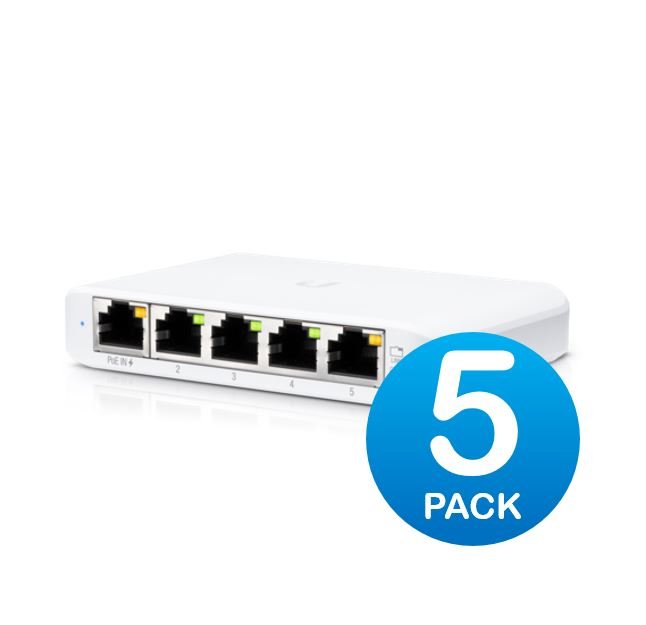

Ubiquiti USW Flex Mini 5 Pack - Managed, UniFi, Layer 2 Gigabit, 5x GbE RJ45 Ports, Power Via PoE (802.3af) /USB Type-C 5V 1A, No PSU,

Ubiquiti Flex Mini 5 Pack

SKU: USW-Flex-Mini, 5 pack

Description: The Switch Flex Mini (USW Flex Mini) is a fully managed, Layer 2 switch with (5) GbE RJ45 ports, including (1) 802.3af PoE input. The USW Flex Mini can be powered with either PoE (via Port 1) or its included USB-C power adapter*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:

• (4) GbE ports
• (1) GbE PoE input port for power
• Optional powering with included 5V, 1A USB-C adapter*
• Layer 2 switch with (5) GbE RJ45 ports, including (1) 802.3af PoE input.
• Can be powered with a 5V, 1A USB-C adapter (Only Comes In Single Pack)

Category: Network - UniFi / Switching

Overview

• Dimensions: 107 x 70 x 21 mm
  (4.2 x 2.8 x 0.8")

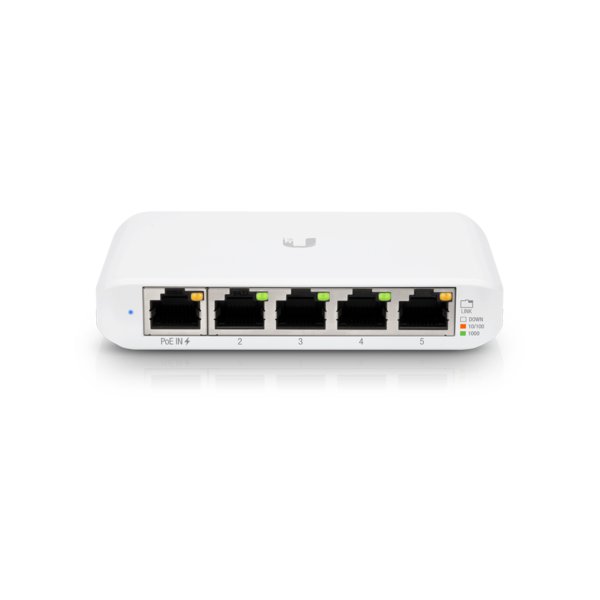

• Port Layout
• 1 GbE RJ45: 5
  (1G/100M/10M)
• Form Factor: Compact desktop

Performance

• Switching Capacity: 10 Gbps
• Total Non-Blocking Throughput: 5 Gbps
• Forwarding Rate: 7 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 2,000

Layer 2 Features

• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes

Hardware

• Max. Power Consumption: 2.5W

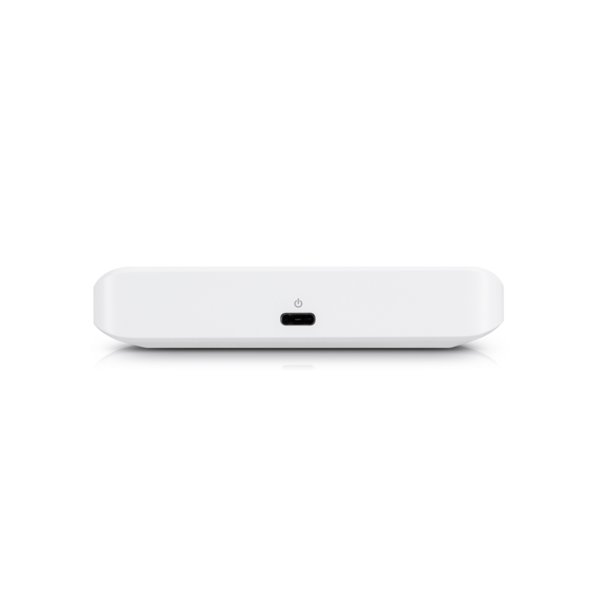

• Power Method: (1) USB Type-C, 5V DC, 1A
  (1) PoE
• Power Input Method: USB Input
  PoE
• Power Supply: AC/DC, external, 5W
• Supported Voltage Range: 4.8—5.2V DC/USB
  44V—57V PoE
• Management: Ethernet
• Heat Dissipation: 8.5 BTU/hr
• Weight: 150 g (5.3 oz)
• Enclosure Material: Polycarbonate
• Mount Material: Polycarbonate
• ESD Protection: Air: ± 16kV, contact: ± 12kV
• Ambient Operating Temperature: -5 to 45° C (23 to 113° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 14501-20-08356

Software

• Application Requirements
• UniFi Network: Version 5.12.5 and later
