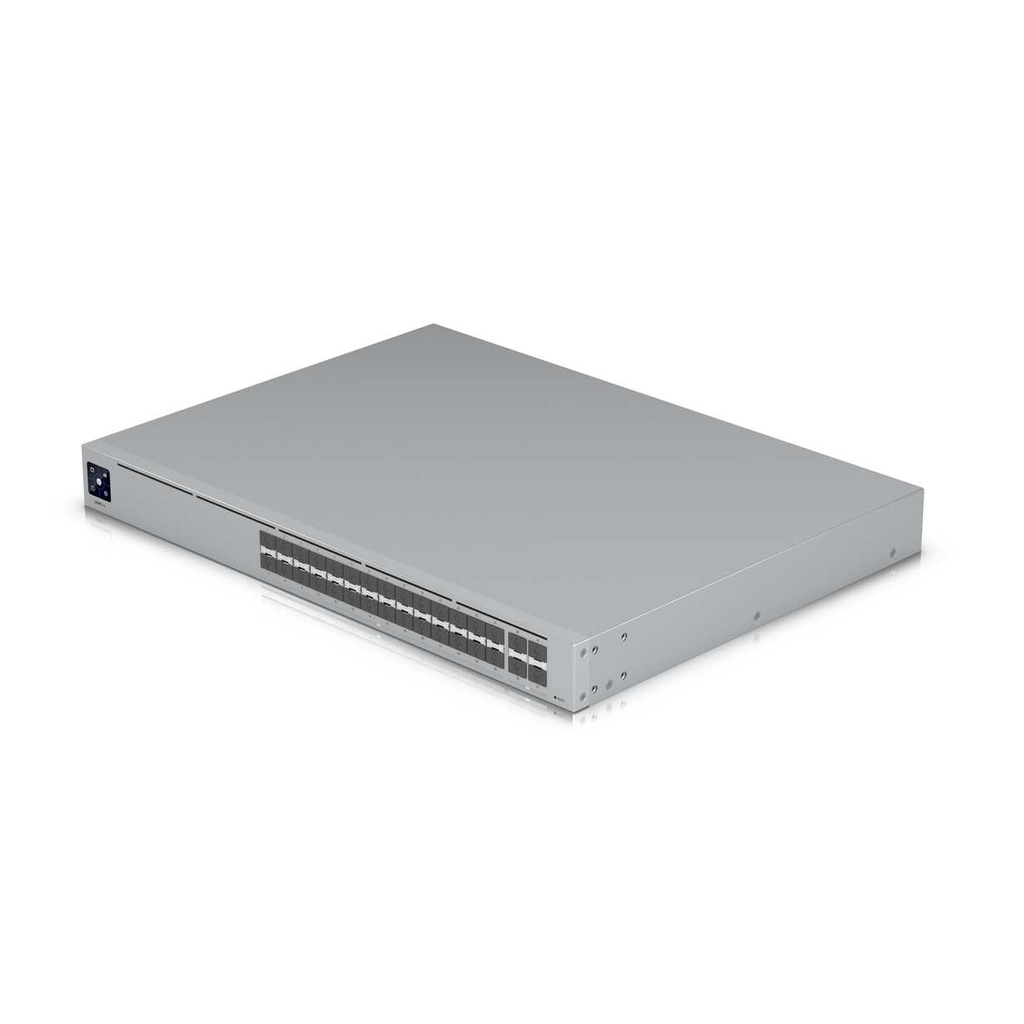

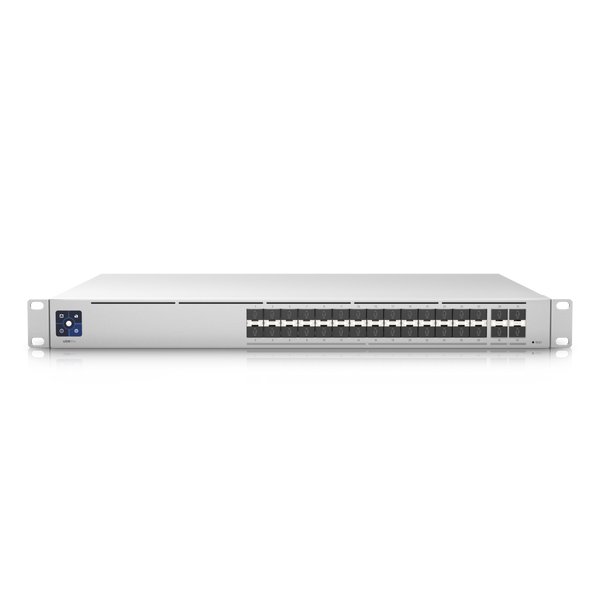

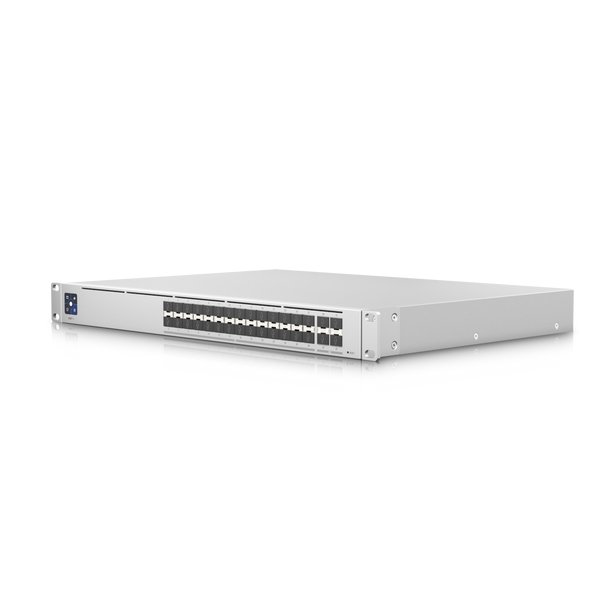

Ubiquiti UniFi Aggregation Switch Pro, 28-port 10G SFP+ & 4-port 25G SFP28 Ports, Layer 3 Switch, 760Gbps Switching Capacity,

Ubiquiti Hi-Capacity Aggregation

SKU: USW-Pro-Aggregation

Description:A 32-port, Layer 3 switch made for high-capacity 10G SFP+ and 25G SFP28 connections.

Features:

• (28) 10G SFP+ ports
• (4) 25G SFP28 ports
• DC power backup-ready
• Layer 3 switching

Category: Network - UniFi / Switching

Overview

• Dimensions: 442 x 325 x 44 mm
  (17.4 x 12.8 x 1.7")
• Port Layout
• 10G SFP+: 28
  (10G/1G)
• 25G SFP28: 4
  (25G/10G/1G)
• Redundancy: DC Power Backup (With UniFi RPS)
• Layer 3: Yes
• Form Factor: Rack mount (1U)

Performance

• Switching Capacity: 760 Gbps
• Total Non-Blocking Throughput: 380 Gbps
• Forwarding Rate: 565 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 32,000
• IPv4 Static Routes: 256
• Packet Buffer Size: 4 MB
• Access Lists
• IPv4: 128
• MAC: 128

Layer 3 Features

• DHCP Server (Local Networks): Yes
• DHCP Relay: Yes
• Inter-VLAN Routing (Local Networks): Yes
• Static Routing (Local Networks): Yes

Layer 2 Features

• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• QoS (DSCP): Yes
• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• Max. Power Consumption: 100W
• Power Method: (1) Universal input, 100–240V AC, 50/60 Hz
  (1) USP RPS DC input
• Power Input Method: AC input
• Power Supply: AC/DC, internal, 100W
• Supported Voltage Range: 100–240V AC
• Management: Ethernet
  AR
• Heat Dissipation: 341 BTU/hr
• Weight: Without mounting brackets: 4.6 kg (10.1 lb)
  With mounting brackets: 4.7 kg (10.4 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 400~1200 mm
  (15.7-47.2")
• LCM Display: 1.3" touchscreen
• ESD Protection: Air: ± 16kV, contact: ± 12kV
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 20756-22-08356

Software

• Application Requirements
• UniFi Network: Version 6.1.25 and later
