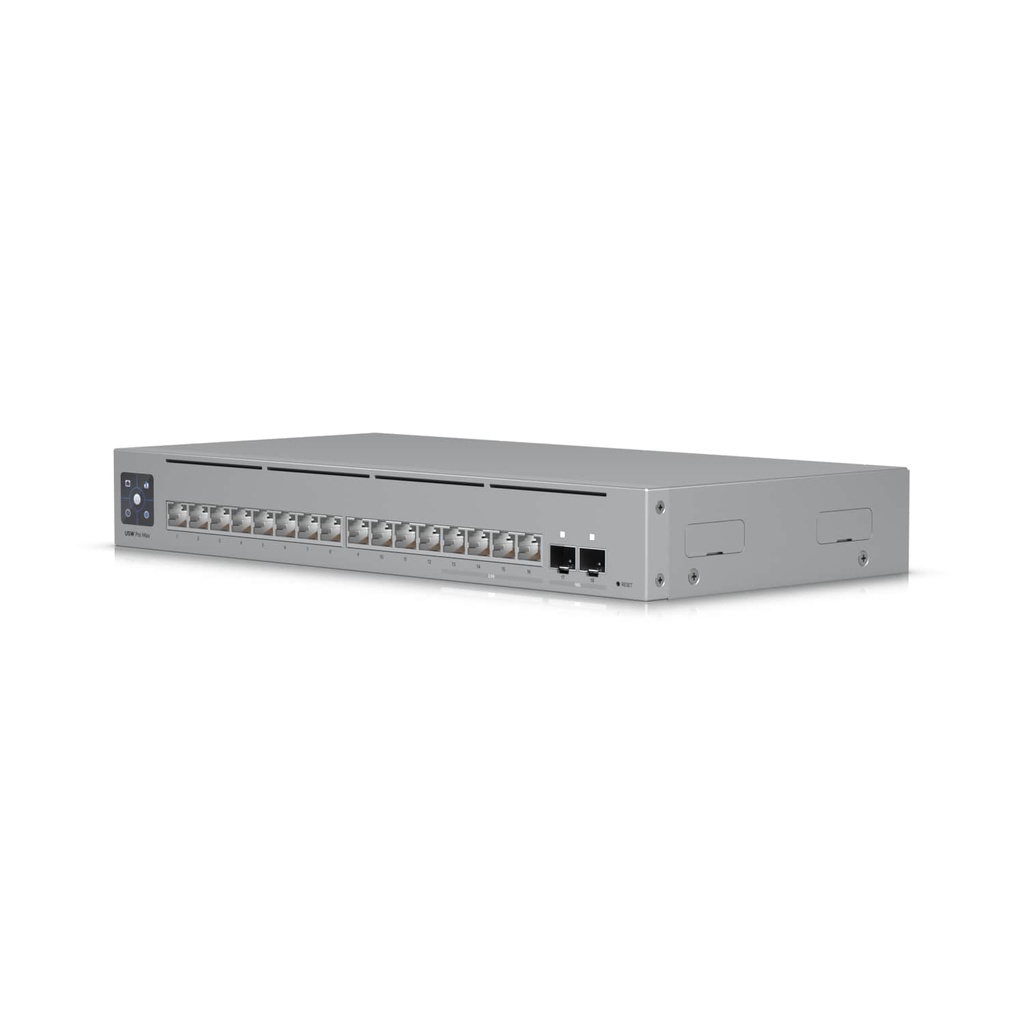

Ubiquiti UniFi Network,Pro Max 16 Switch,16-port, Layer 3 Etherlighting, 2.5 GbE, Power Supply 5V, 25W, Versatile Mounting Options.

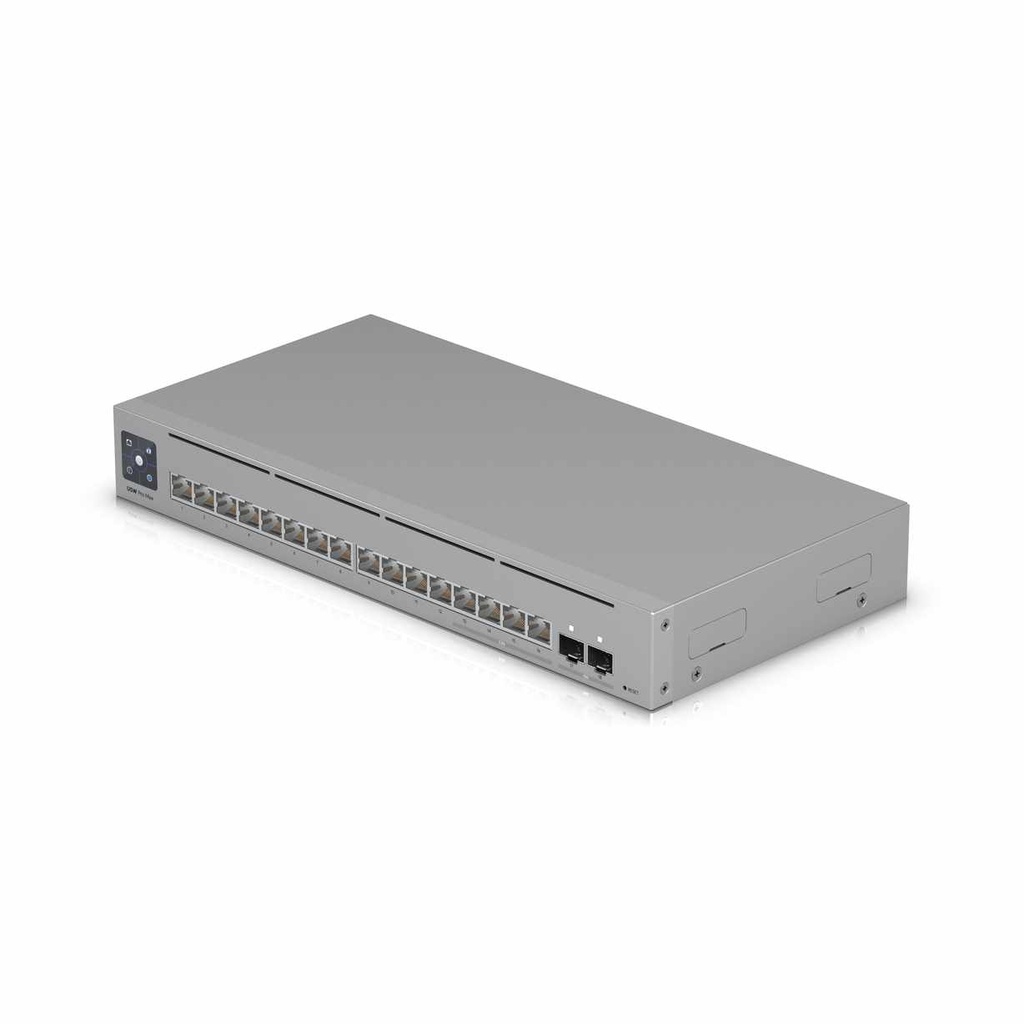

Ubiquiti Pro Max 16 Switch

Description:
A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.

SKU:USW-Pro-Max-16

Features:

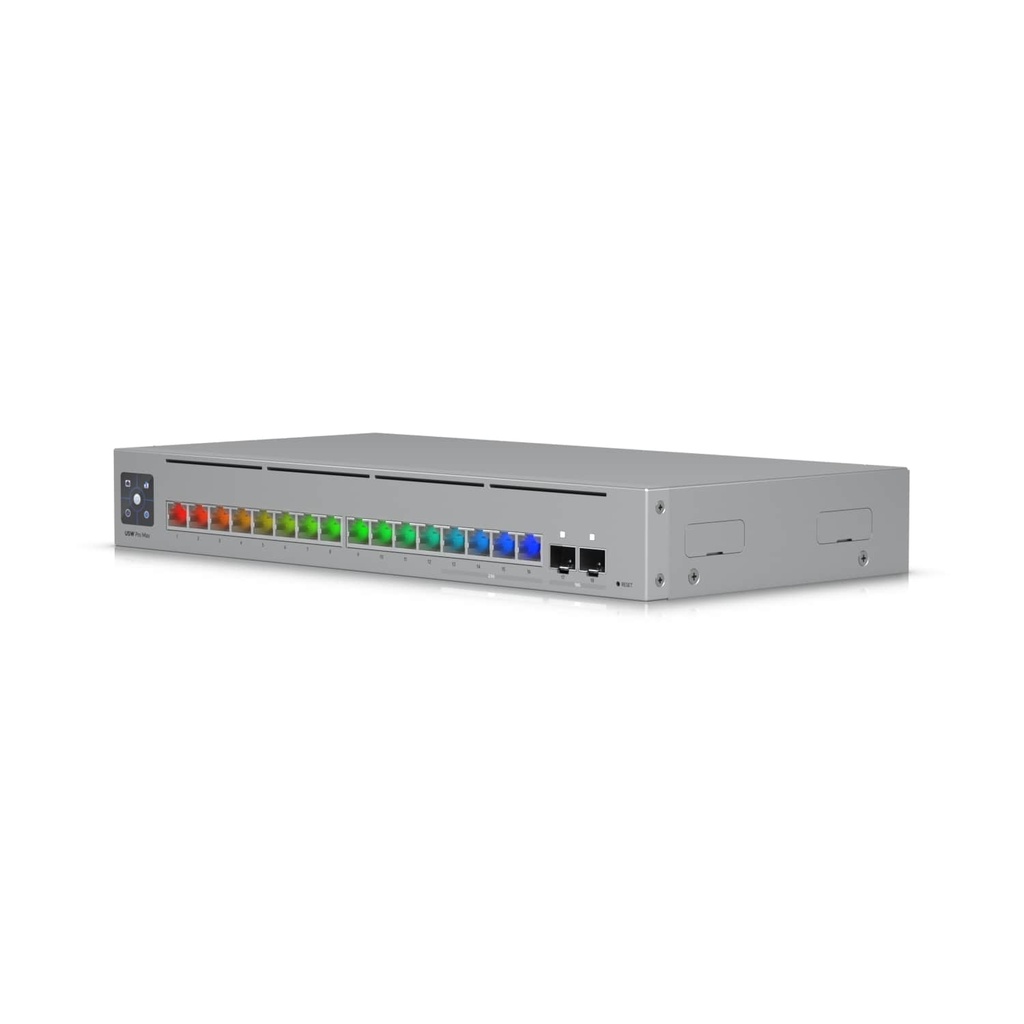

• Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
• (4) 2.5 GbE RJ45 ports
• (12) GbE RJ45 ports
• (2) 10G SFP+ ports

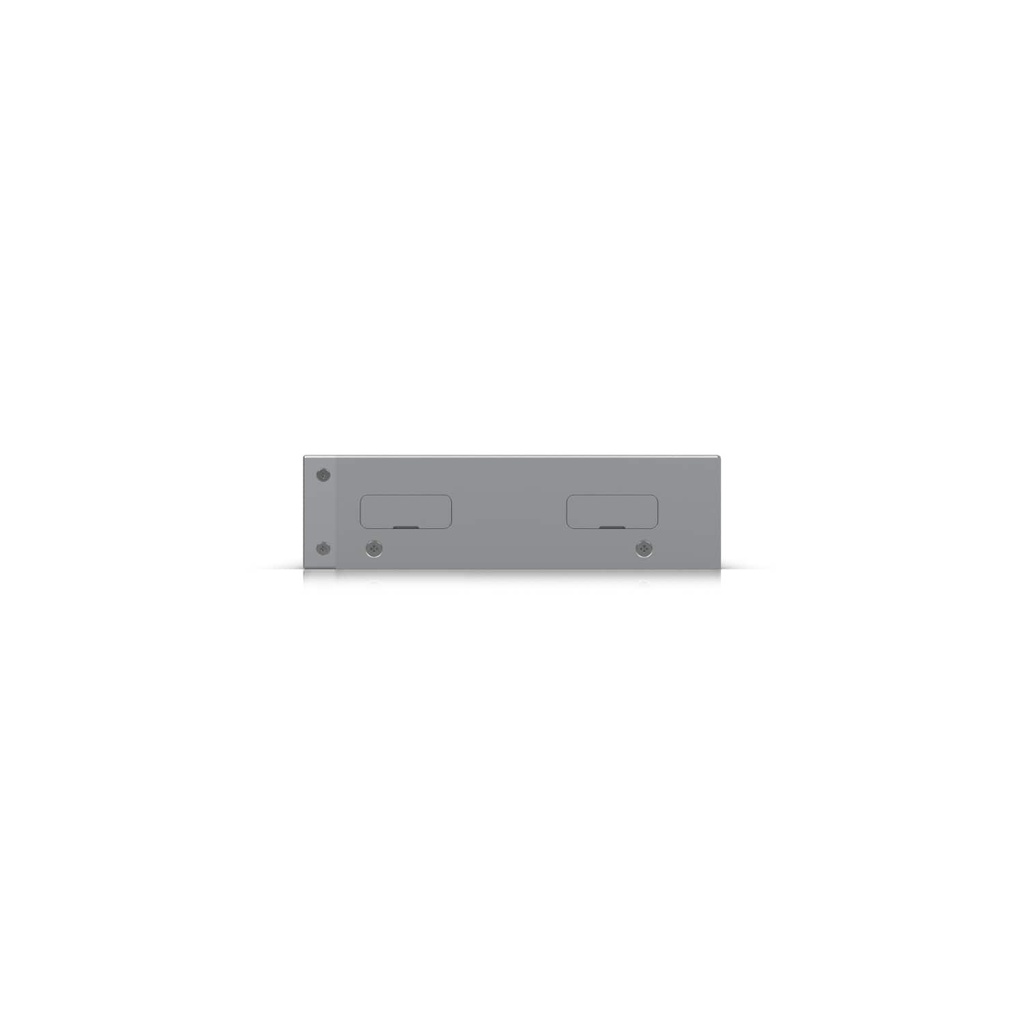

• Versatile desktop, wall, and rack** mounting
• Silent, fanless cooling system

*Pair with UniFi Etherlighting Patch Cables for optimal brightness.
**Requires add-on Rack Mount accessory.

Category: Network - UniFi / Switching

Overview

• Dimensions: 325.1 x 160 x 43.7 mm
  (12.8 x 6.3 x 1.7")

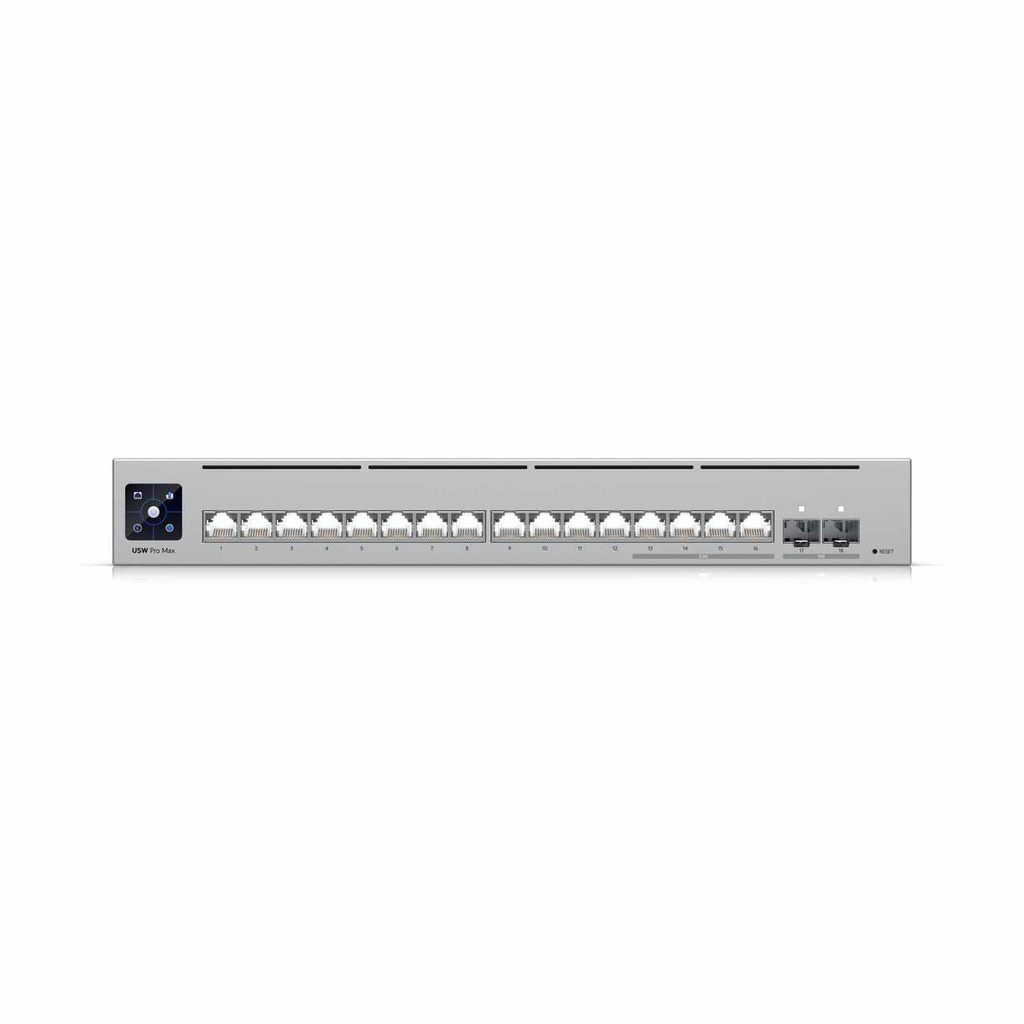

• Port Layout
• 1 GbE RJ45: 12
  (1G/100M/10M)
• 2.5 GbE RJ45: 4
  (2.5G/1G/100M/10M)
• 10G SFP+: 2
  (10G/1G)
• Layer 3: Yes
• Form Factor: Rack mount (1U), desktop, wall (1U rack-mounting requires add-on Rack Mount accessory)
• Etherlighting™: Yes

Performance

• Switching Capacity: 84 Gbps
• Total Non-Blocking Throughput: 42 Gbps
• Forwarding Rate: 62 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 16,000
• IPv4 Static Routes: 256
• Packet Buffer Size: 1.5 MB
• Access Lists
• IPv4: 128
• MAC: 128

Layer 3 Features

• DHCP Server (Local Networks): Yes
• DHCP Relay: Yes
• Inter-VLAN Routing (Local Networks): Yes
• Static Routing (Local Networks): Yes

Layer 2 Features

• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• QoS (DSCP): Yes
• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• Max. Power Consumption: 25W
• Power Method: AC/DC Adapter (included)

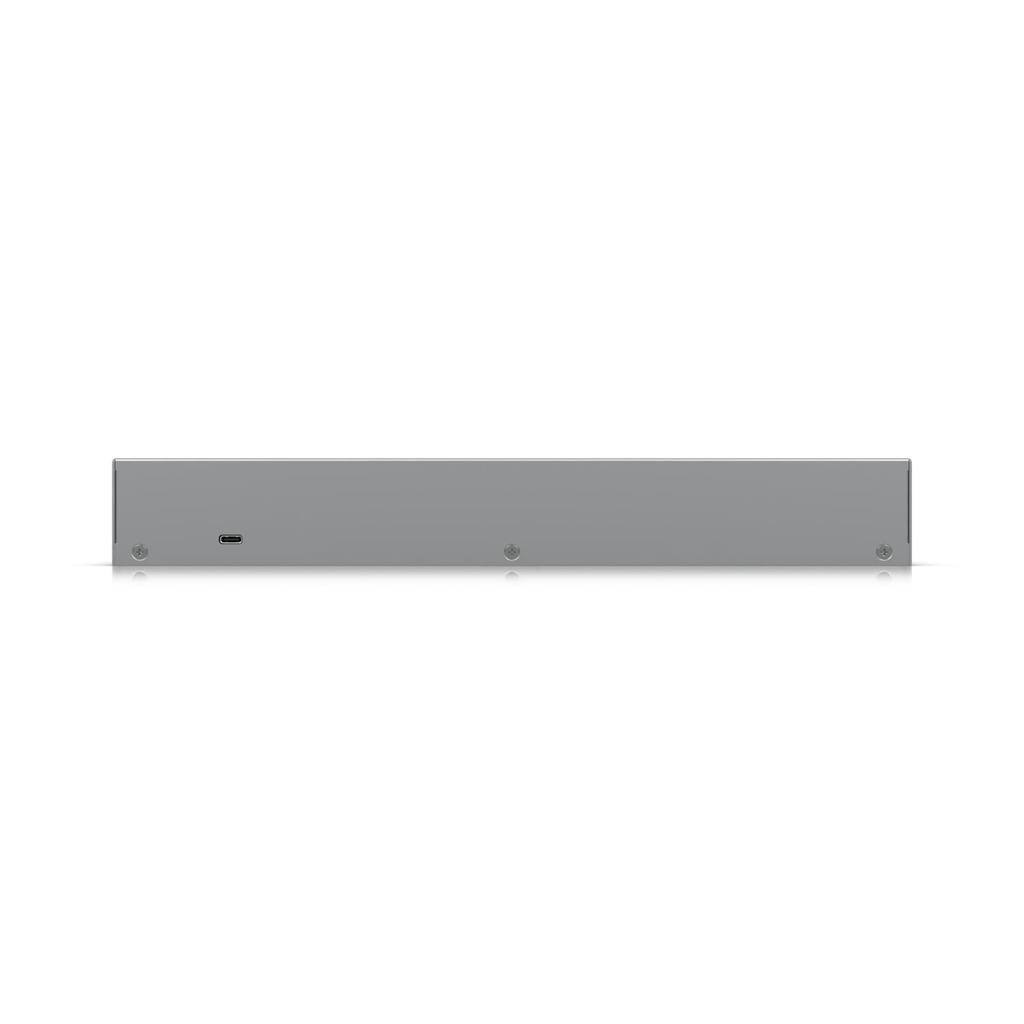

• Power Input Method: USB Type-C, 5V DC, 5A
• Power Supply: AC/DC, external, 25W
• Supported Voltage Range: 4.8—5.2V DC/USB
• Management: Ethernet
  AR
• Heat Dissipation: 85.3 BTU/hr
• Weight: 1.95 kg (4.3 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel
• Supported Rack Depth: 400~1200 mm
  (15.7-47.2")
• LCM Display: 1.3" touchscreen
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• Etherlighting™
• Ethernet: Yes
• SFP+: Yes
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 08953-24-08356

Software

• Application Requirements
• UniFi Network: Version 8.1.127 and later
