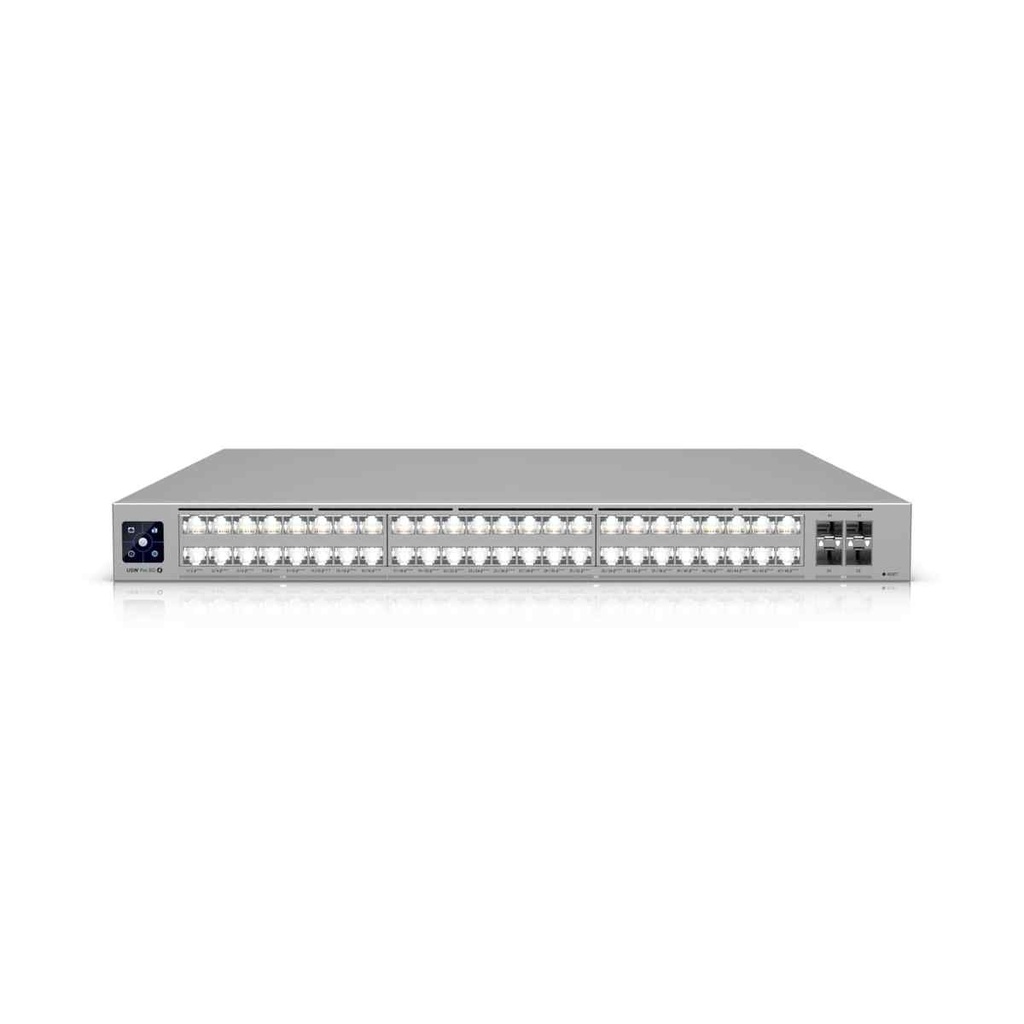

Ubiquiti Pro XG 48 PoE, Professional-grade, 48-port Layer 3 Etherlighting, PoE+++ Switch, (32) 10 GbE, (16) 2.5 GbE PoE, (4) 25G SFP28 Ports

Ubiquiti Pro XG 48 PoE

SKU: USW-Pro-XG-48-PoE (1080W)

Description:
Professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE, and (4) 25G SFP28 ports.

Features:

• Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
• (32) 10 GbE, (16) 2.5 GbE ports, all PoE+++ (90W capable)
• (4) 25G SFP28 ports
• DC power backup ready**
• 1,080W total PoE availability
• *Pair with UniFi Etherlighting Patch Cables for optimal brightness.
• **Requires UniFi RPS.

Category: Network - UniFi / Switching

Overview

• Dimensions: 442 x 480 x 44 mm
  (17.4 x 18.9 x 1.7")
• Port Layout
• 2.5 GbE RJ45: 16 (All PoE+++)
  (2.5G/1G/100M/10M) (10/100M half-duplex not supported)
• 10 GbE RJ45: 32 (All PoE+++)
  (10G/5G/2.5G/1G/100M/10M) (10/100M half-duplex not supported)
• 25G SFP28: 4
  (25G/10G/1G)
• Max. PoE Output: Up to PoE+++ (802.3bt Type 4, Class 8)
• Total PoE Availability: 200-240V AC: 1080W
  100-120V AC: 972W
• Redundancy: DC Power Backup (With UniFi RPS)
• Layer 3: Yes
• Form Factor: Rack mount (1U)
• Etherlighting™: Yes

Performance

• Switching Capacity: 920 Gbps
• Total Non-Blocking Throughput: 460 Gbps
• Forwarding Rate: 684 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 32,000
• IPv4 Static Routes: 512
• Packet Buffer Size: 8 MB
• Access Lists
• IPv4: 256
• MAC: 256

Layer 3 Features

• DHCP Server (Local Networks): Yes
• DHCP Relay: Yes
• Inter-VLAN Routing (Local Networks): Yes
• Static Routing (Local Networks): Yes

Layer 2 Features

• LACP Port Aggregation: Yes
• STP & RSTP: Yes
• QoS (DSCP): Yes
• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
• IGMP Snooping: Yes
• 802.1X Control: Yes
• MAC-Based ACLs & Device Isolation: Yes
• DHCP Snooping & Guarding: Yes
• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• MAC Address Blocking: Yes
• IP-Based ACLs & Network Isolation: Yes
• MAC-Based Port Restriction: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes
• LLDP-MED: Yes
• Voice VLAN: Yes
• Loop Protection: Yes
• Virtual Network Override: Yes

Hardware

• PoE Ports
• PoE+++: 48
• Max. PoE Wattage per Port by PSE
• PoE: 15.4W
• PoE+: 30W
• PoE++: 60W
• PoE+++: 90W
• Max. Power Consumption: 200W (Excluding PoE Output)

  200-240V: 1,280W /
  100-120V AC: 1,172W (Including PoE Output)

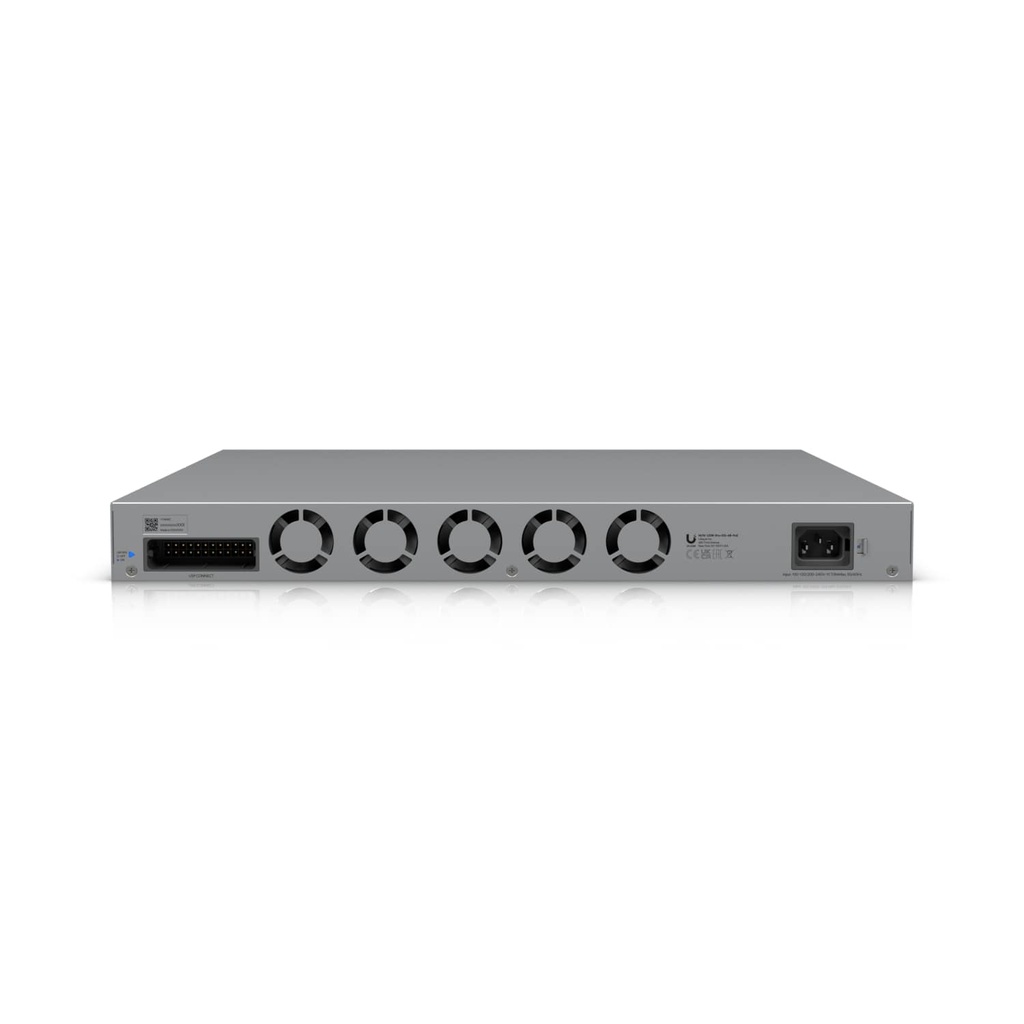

• Power Method: (1) Universal input, 100–240V AC, 50/60 Hz
  (1) USP RPS DC input
• Power Input Method: AC input
• Power Supply: AC/DC, internal, 1,350W
• Supported Voltage Range: 100–240V AC
• Management: Ethernet
  AR
• Weight: Without mounting brackets: 8.7 kg (19.2 lb)
  With mounting brackets: 8.8 kg (19.4 lb)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel

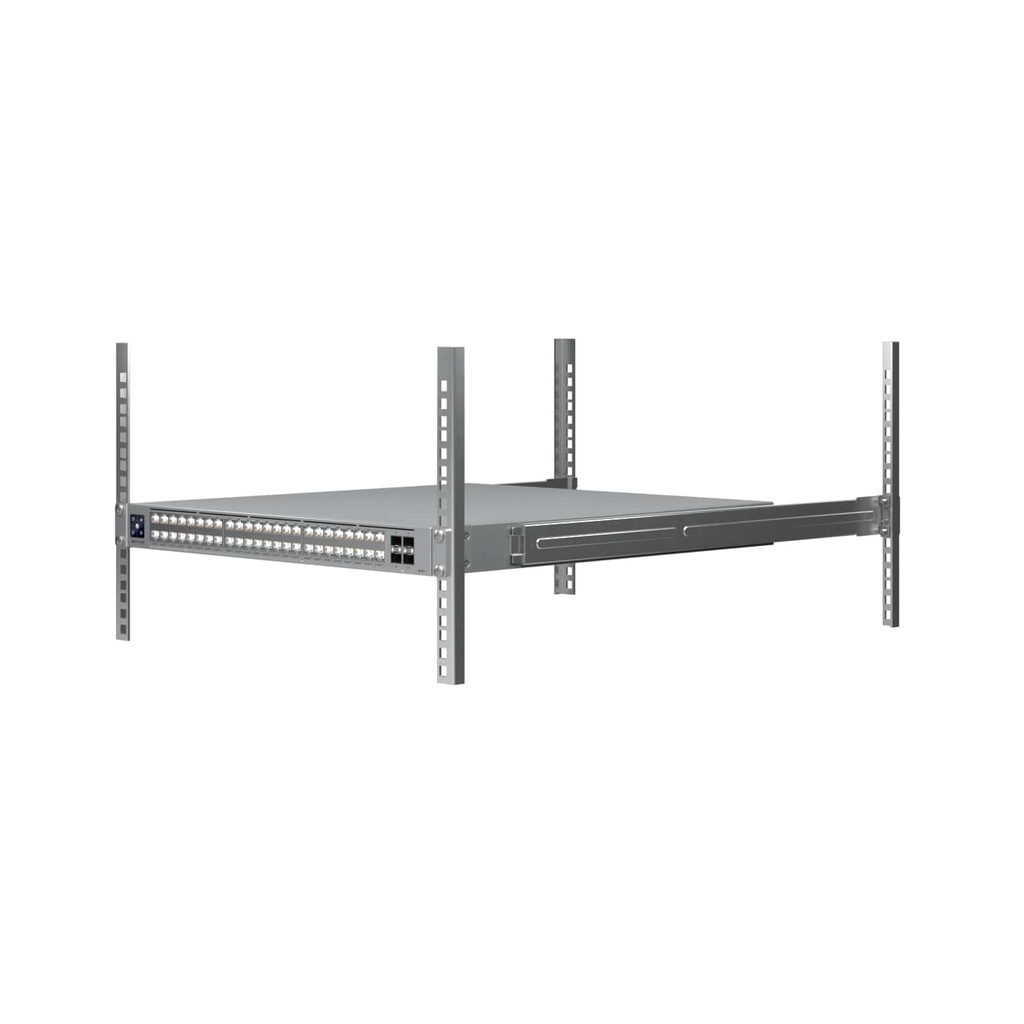

• Supported Rack Depth: 482.6 mm (19") four-post racks
  Posts depths ranging from 600 to 1,066 mm (23.6-42”)
• LCM Display: 1.3" touchscreen
• ESD Protection: Air: ± 30kV, contact: ± 20kV
• Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• Etherlighting™
• Ethernet: Yes
• SFP28: Yes
• LEDs
• RPS: Yes
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 04322-25-08356

Software

• Application Requirements
• UniFi Network: Version 9.1.120 and later
