Ubiquiti UniFi Express 7, 2Packs,Mesh-Scalable,Super-Compact 10G Cloud Gateway,Integrated 6 GHz WiFi 7.Plug-And-Play Whole-Home WiFi,10G Multi-Link

Ubiquiti UniFi Express 7

SKU : UX7-2

Specs: Click Here

Description:
2Packs, Mesh-scalable, super-compact 10G Cloud Gateway with integrated 6 GHz WiFi 7. Plug-and-play Whole-Home WiFi with true 10G Multi-Link Operation, intelligent placement guidance, and effortless mesh expansion with additional nodes.

Category: Network - UniFi / Console / Gateway

Overview

• Dimensions: 117 x 117 x 42.5 mm
  (4.61 x 4.61 x 1.67'')
• UniFi Application Suite
• Network: Yes
• Managed UniFi Devices: 30+
• Simultaneous Users Connected: 300+
• Max. WAN Port Count: 1
• Default WAN Ports: (1) 10 GbE RJ45

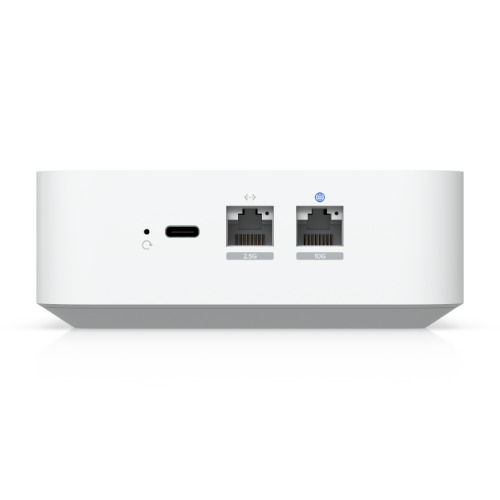

• Port Layout
• 2.5 GbE RJ45: 1
  (2.5G/1G/100M/10M)
• 10 GbE RJ45: 1
  (10G/5G/2.5G/1G/100M)
• IDS/IPS Throughput: 2.3 Gbps
• Form Factor: Compact desktop
• Coverage Area: 160 m² (1,750 ft²)

Security

• Stateful Firewall: Yes
• Application-Aware Layer 7 Firewall: Yes
• DPI & Traffic Identification: Yes
• Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): Yes
• Content Filtering: Yes
• Intrusion Prevention (IPS/IDS): Yes
• Ad Blocking: Yes
• IDS/IPS Signatures: 20,000+ with CyberSecure
• VLAN/Subnet-based Traffic Segmentation: Yes

VPN & SD-WAN

• License-Free SD-WAN: Yes
• Site-to-Site VPN
• Site Magic: Yes
• IPsec: Yes
• OpenVPN: Yes
• VPN Server
• Identity Endpoint One-Click VPN: Yes
• Teleport Zero-Configuration VPN: Yes
• WireGuard: Yes
• OpenVPN: Yes
• L2TP: Yes
• VPN Client
• OpenVPN: Yes
• WireGuard: Yes

Networking

• Dynamic Routing
• OSPF: Yes
• Advanced QoS: Yes
• Multicast DNS (mDNS): Yes
• Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): Yes
• Integrated RADIUS Server: Yes
• RADIUS over TLS (RadSec): Yes
• Additional Internet Failover with UniFi LTE Backup: Yes
• Internet Quality and Outage Reporting: Yes
• Policy-based WAN and VPN Routing: Yes
• Customizable DHCP Server: Yes
• IPv6 ISP Support: Yes
• IGMP Proxy: Yes
• Virtual Network Override: Yes

Integrated WiFi

• WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
• Throughput
• 6 GHz: 5.7 Gbps
• 5 GHz: 4.3 Gbps
• 2.4 GHz: 688 Mbps
• MIMO
• 6 GHz: 2 x 2 (DL/UL MU-MIMO)
• 5 GHz: 2 x 2 (DL/UL MU-MIMO)
• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
• Antenna Gain
• 6 GHz: 6 dBi
• 5 GHz: 7 dBi
• 2.4 GHz: 4 dBi
• Max. TX Power
• 6 GHz: 24 dBm
• 5 GHz: 26 dBm
• 2.4 GHz: 23 dBm
• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
• Max. BSSIDs: 4 per Radio (Gateway Mode)
  4 per Radio (AP Mode)
• Supported Data Rates
• 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
• 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
• 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Hardware

• Max. Power Consumption: 22W
• Power Method: USB type C (5V DC/5A)
• Power Supply: USB type C (5V DC/5A)
  (Adapter included)
• Supported Voltage Range: 100–240V AC
• Heat Dissipation: 75 BTU/hr
• Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
• System Memory: 3 GB
• Weight: 443 g (1 lb)
• Enclosure Material: Polycarbonate

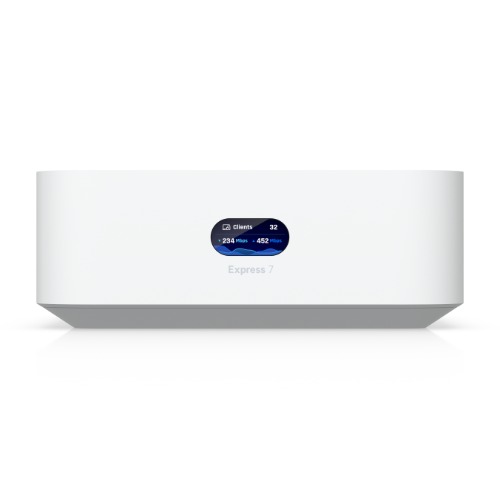

• LCM Display: 0.96" status display
• Management: Ethernet
  Bluetooth
• LEDs
• Ethernet: Yes
• Button: (1) Factory reset
• ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
• Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 06656-25-08356

Software

• VLAN: 802.1Q
• Guest Traffic Isolation: Yes
• Application Requirements
• UniFi Network: Version 9.0.108 and later
